NZXT H9 Flow Dual-Chamber Mid-Tower ATX Case – White | CM-H92FW-01
The NZXT H9 Flow White (CM-H92FW-01) is a spacious 76.7L dual-chamber ATX case designed for high-performance gaming and workstation builds. It features panoramic tempered glass, optimized high-airflow panels, 4 pre-installed airflow fans, support for 420mm radiators, GPUs up to 459mm, E-ATX and back-connect motherboards, and extensive storage and cable-management space.
Product Overview

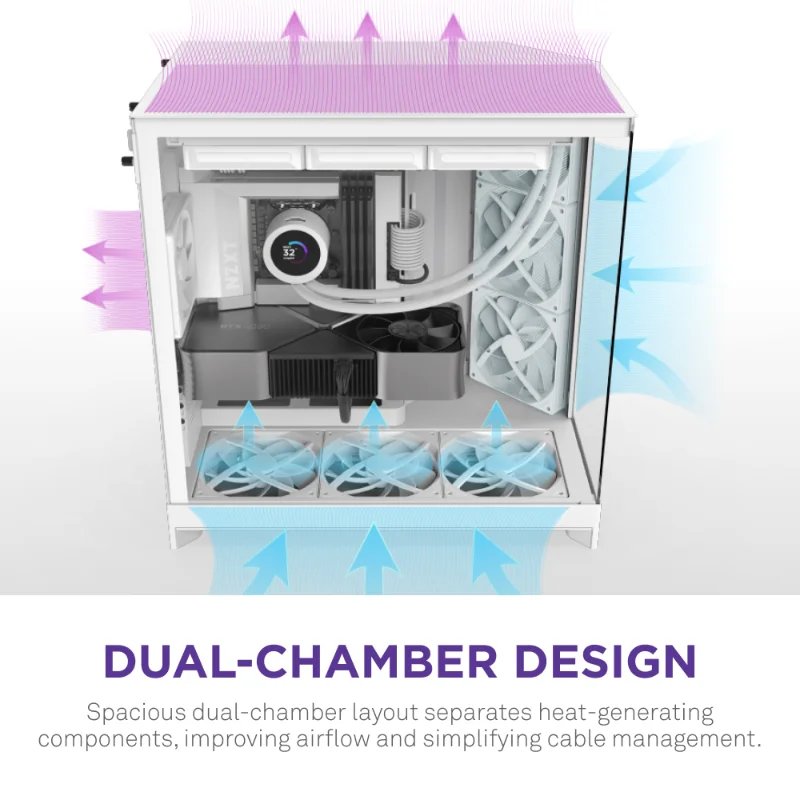

The NZXT H9 Flow White (CM-H92FW-01) is the current 2025-generation H9 Flow, featuring a spacious dual-chamber layout that separates the PSU and storage area from the main components. This arrangement improves cable management while providing an unobstructed cooling path for high-performance hardware.
Its showcase design combines ultra-clear tempered glass with perforated airflow panels. NZXT's angled front-right fan mounting directs fresh air toward the main components, while the expanded cooling layout provides room for high-end air cooling, AIOs, and custom liquid-cooling configurations.

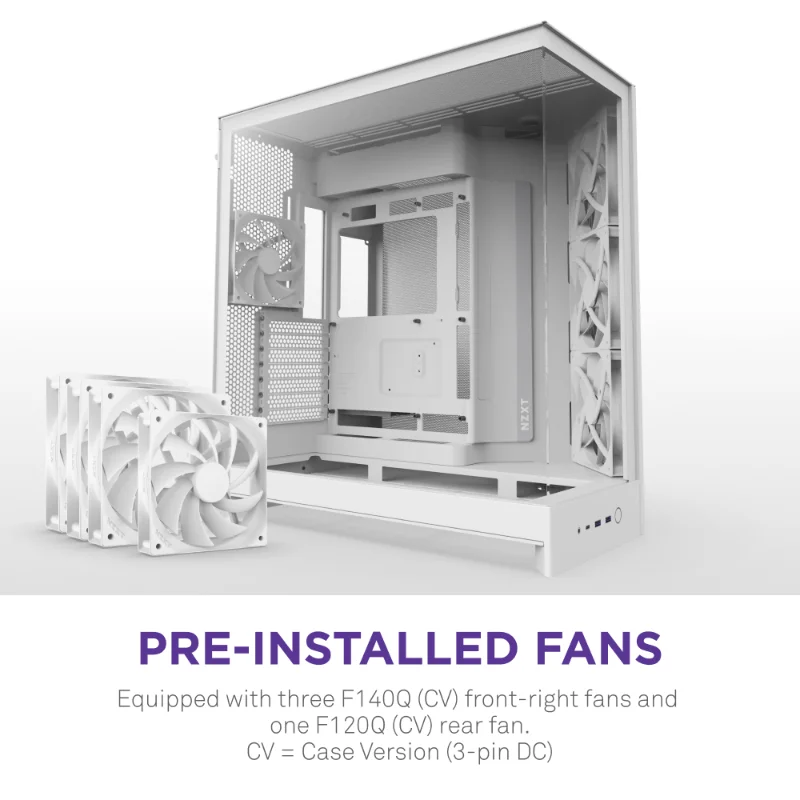

The standard H9 Flow comes equipped with 3 × F140Q 140mm airflow fans at the front-right and 1 × F120Q 120mm rear fan. Cooling can be expanded with three 120mm or three 140mm fans at the front-right, top, and bottom, plus one 120mm rear fan.

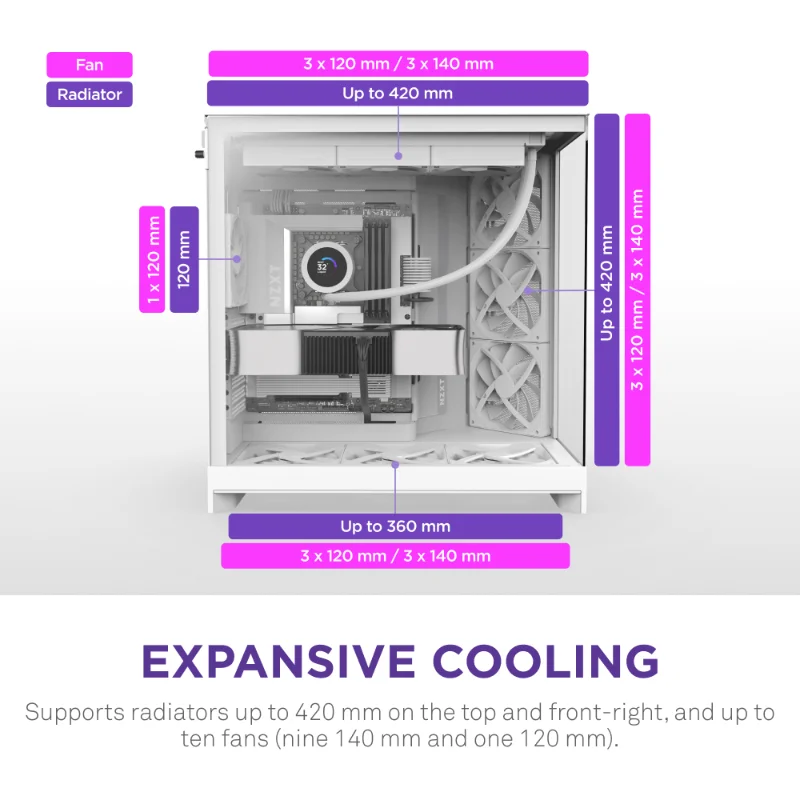

Radiator support is equally extensive, with up to 420mm radiators at both the front-right and top, up to 360mm at the bottom, and 120mm at the rear. The top allows up to 80mm combined radiator-and-fan thickness with 360mm radiators or 62mm with 420mm radiators.

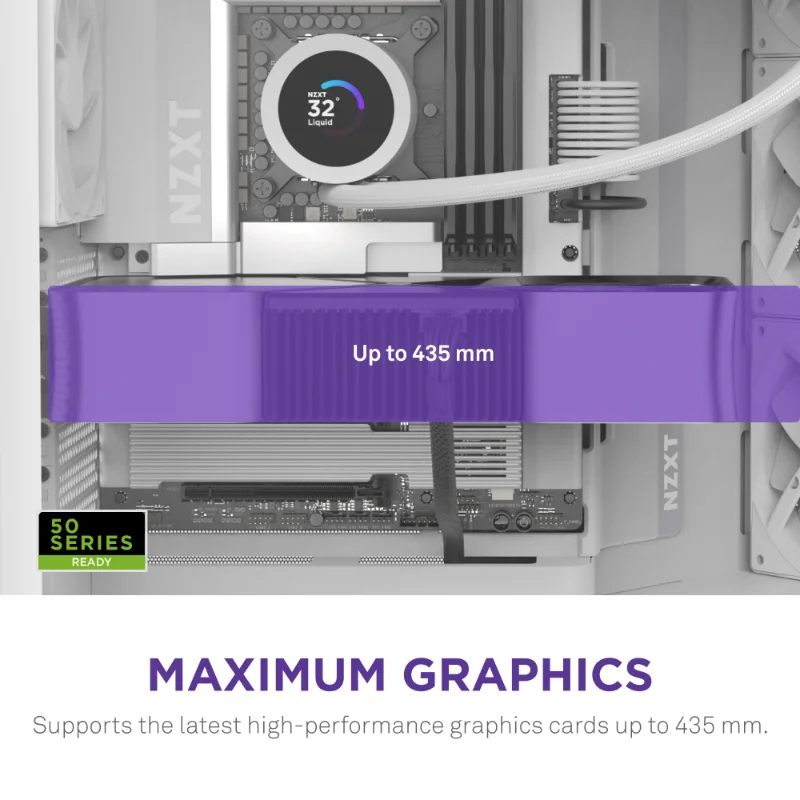

Hardware compatibility includes E-ATX motherboards up to 277mm wide, ATX, Micro-ATX, and Mini-ITX. ATX back-connect motherboards are also supported. GPU clearance reaches up to 459mm, while CPU coolers up to 165mm and ATX power supplies up to 200mm are supported.
Storage capacity includes 4+2 × 2.5-inch positions and 2 × 3.5-inch bays. Front connectivity provides two USB 3.2 Type-A ports, one high-speed USB 3.2 Gen 2×2 Type-C port, and a 3.5mm headset jack.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- 🤍 White Edition – CM-H92FW-01
- 🖥️ Spacious 76.7L Dual-Chamber Design
- 🪟 Ultra-Clear Panoramic Tempered Glass
- 🌬️ Optimized High-Airflow Perforated Panels
- 🌀 3 × F140Q 140mm Front-Right Fans Included
- 🌀 1 × F120Q 120mm Rear Fan Included
- ❄️ Extensive 120mm & 140mm Fan Support
- 💧 420mm Front-Right Radiator Support
- 💧 420mm Top Radiator Support
- 💧 360mm Bottom Radiator Support
- 🎮 Up to 459mm GPU Clearance
- 🛡️ Compatible with NZXT Vertical GPU Mounting Kits (2024 or newer)
- 🔲 E-ATX / ATX / Micro-ATX / Mini-ITX

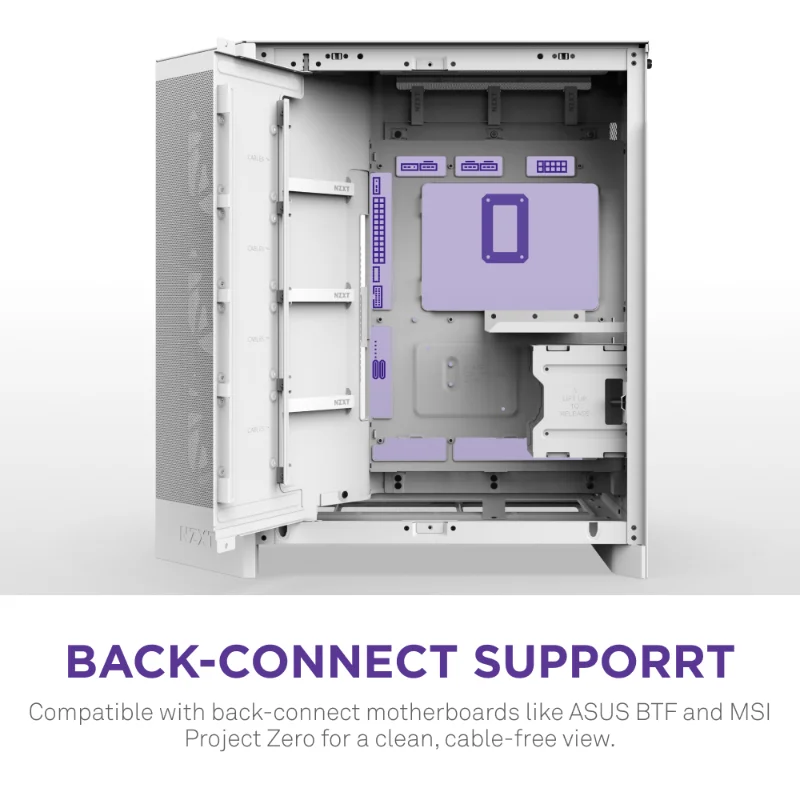

- 🔌 ATX Back-Connect Motherboard Support
- ❄️ Up to 165mm CPU Cooler Height
- ⚡ ATX PSU Support up to 200mm
- 💾 Up to 6 × 2.5" + 2 × 3.5" Drives
- 🔌 USB-C 20Gbps + 2 × USB-A
- 🧹 Integrated Airflow Mesh + Removable Bottom Filter
Technical Specifications
| Category | Cases |
| Manufacturer | NZXT |
| Model | CM-H92FW-01 |
| Case Type | Large Dual-Chamber Mid-Tower |
| Motherboard Support | E-ATX (up to 277mm) / ATX / Micro-ATX / Mini-ITX |
| GPU Clearance | Up to 459mm |
| Radiator Support | Top up to 420mm / Front-Right up to 420mm / Bottom up to 360mm / Rear 120mm |
| Included Fans | 3 × F140Q (Case Version) + 1 × F120Q (Case Version) |
| Front I/O | 2 × USB 3.2 Type-A + 1 × USB-C Gen 2x2 + Headset Jack |
| PSU | Not Included / Please Check Official Specifications |
| Color | White |
| Warranty | 1 Year Manufacturer Warranty |
