NZXT H7 Flow (2022) ATX Mid-Tower Airflow Case – White | CM-H71FW-01
The NZXT H7 Flow White (CM-H71FW-01) is a spacious ATX mid-tower case designed for high-performance airflow builds. It features perforated front and top panels, ultra-clear tempered glass, intuitive cable management, support for GPUs up to 400mm, CPU coolers up to 185mm, and 360mm radiators at both the front and top.
Product Overview

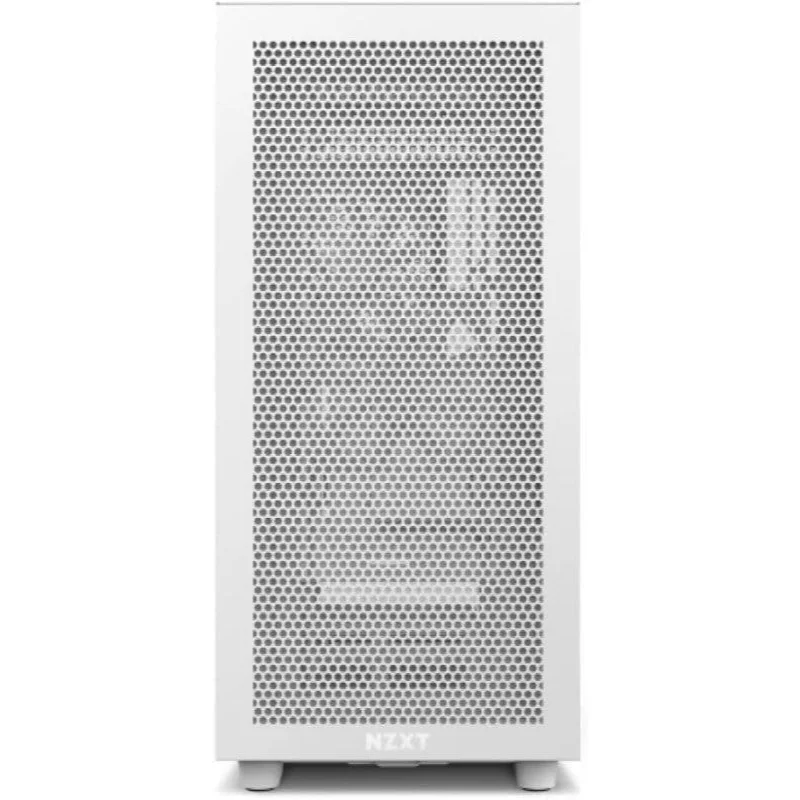

The NZXT H7 Flow White (CM-H71FW-01) is the original 2022-generation H7 Flow, designed around strong airflow, generous component clearance, and straightforward system building. Its perforated front and top panels provide an open path for cool intake air and heat exhaust, making it suitable for powerful gaming PCs and workstation configurations.

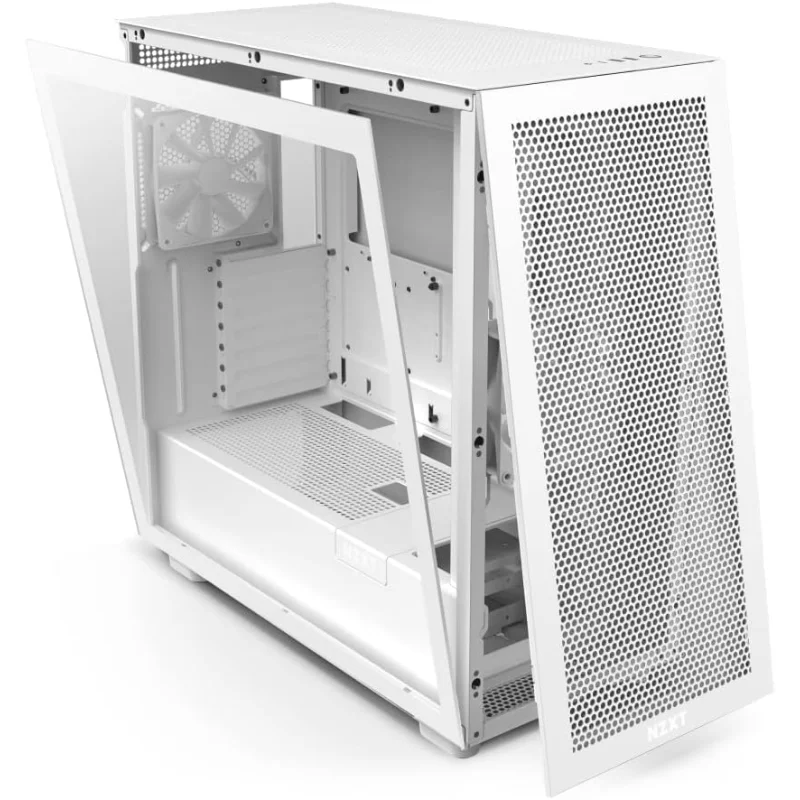

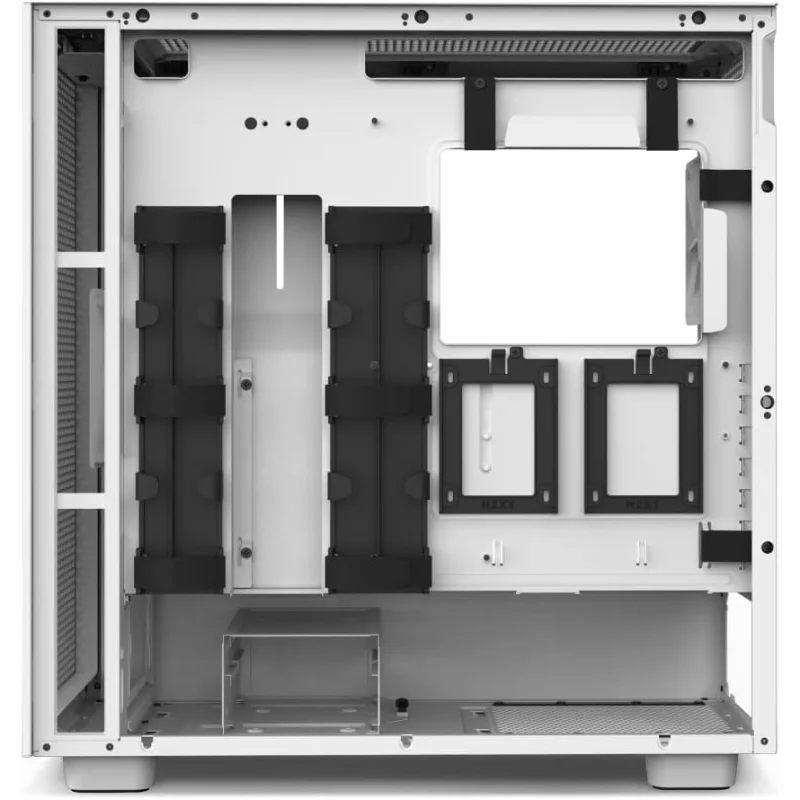

The chassis uses SGCC steel with an ultra-clear tempered-glass side panel, providing a clean view of the system's internal components. Tool-less access to the front and side panels makes installation and maintenance easier, while NZXT's cable-management system uses widened channels, hooks, and straps to keep wiring organized.
Cooling support is extensive, with space for 3 × 120mm or 3 × 140mm fans at the front, 3 × 120mm or 2 × 140mm at the top, and 1 × 120mm or 1 × 140mm at the rear. Radiator support extends up to 360mm at both the front and top, with up to a 140mm radiator at the rear. The front also supports a 360mm radiator in a push/pull configuration.
NZXT lists the H7 Flow with two F Series Quiet 120mm case-version fans included. These F120Q case fans operate at 1200 ± 240 RPM, delivering up to 62.18 CFM airflow with a 3-pin DC connection.
Component compatibility is generous, with up to 400mm GPU clearance and 185mm CPU cooler clearance. NZXT's current product page lists Mini-ITX, Micro-ATX, and ATX support, while its updated H7 Series technical support document additionally specifies E-ATX support up to 272mm wide. This generation does not support back-connect motherboards.

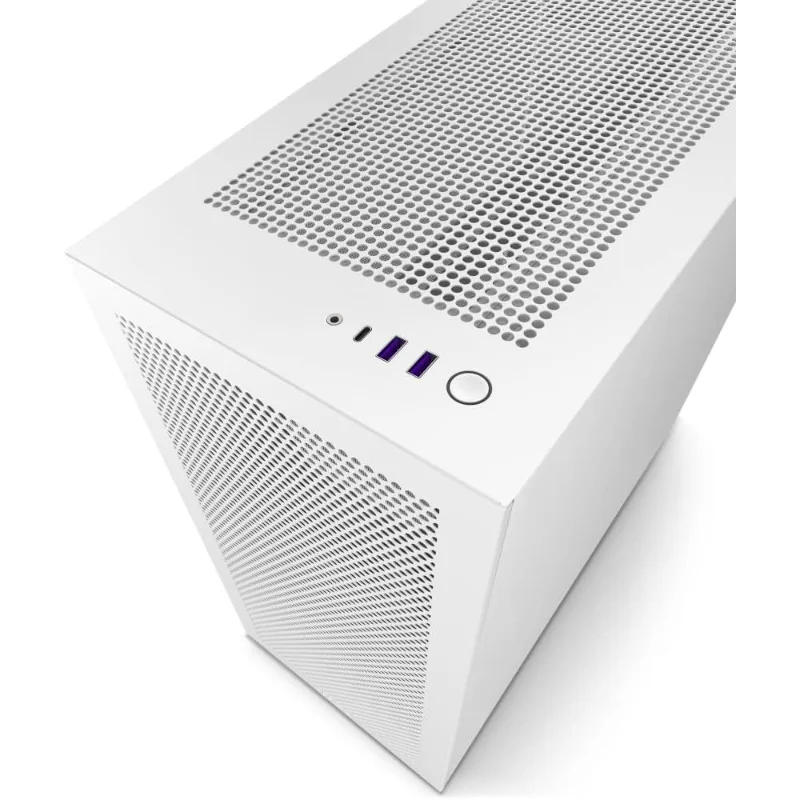

Storage support includes up to six 2.5-inch mounting positions (4+2) and two 3.5-inch drive bays. Front connectivity provides two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2×2 Type-C 20Gbps port, and a headset audio jack.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- 🤍 White Edition – CM-H71FW-01
- 🌬️ High-Airflow Perforated Front & Top Panels
- 🪟 Ultra-Clear Tempered-Glass Side Panel
- 🔲 E-ATX / ATX / Micro-ATX / Mini-ITX Support*
- 🎮 Up to 400mm GPU Clearance
- ❄️ Up to 185mm CPU Cooler Clearance
- 💧 Up to 360mm Front Radiator
- 💧 Up to 360mm Top Radiator
- 💧 Up to 140mm Rear Radiator
- 🌀 Front: 3 × 120mm / 3 × 140mm Fans
- 🌀 Top: 3 × 120mm / 2 × 140mm Fans
- 🌀 Rear: 1 × 120mm / 1 × 140mm Fan
- 🌬️ 2 × F Series Quiet 120mm Fans Included
- 🔄 Front 360mm Push/Pull Radiator Support
- 🧰 Wide Cable Channels, Hooks & Straps
- 🔓 Tool-Less Front & Side Panel Access
- 🎮 Optional Vertical GPU Mounting Support
- 💾 Up to 6 × 2.5" + 2 × 3.5" Drives
- 🔌 USB-C 20Gbps + 2 × USB-A
- 🧹 Filters on Air Intake Areas
Technical Specifications
| Category | Cases |
| Manufacturer | NZXT |
| Model | CM-H71FW-01 |
| Case Type | Mid-Tower PC Case |
| Motherboard Support | E-ATX up to 272mm / ATX / Micro-ATX / Mini-ITX |
| GPU Clearance | Please Check Official Specifications |
| Radiator Support | Please Check Official Specifications |
| Included Fans | 2 × F Series Quiet 120mm Case Fans |
| Front I/O | 2 × USB 3.2 Gen 1 Type-A / 1 × USB 3.2 Gen 2×2 Type-C / Headset Jack |
| PSU | Not Included / Please Check Official Specifications |
| Color | White |
| Warranty | 1 Year Manufacturer Warranty |
