NZXT H6 RGB+ Compact Dual-Chamber ATX Case – White | CC-H62FW-P1
The NZXT H6 RGB+ White (CC-H62FW-P1) is a compact 55L dual-chamber ATX gaming case featuring seamless curved tempered glass, high-airflow mesh, back-connect motherboard support, and a complete RGB cooling setup. It includes 2 × F360 RGB Reverse fan frames, 1 × F120 RGB rear fan, and Control Hub Lite, while supporting up to 10 × 120mm fans and a 360mm top radiator.
Product Overview

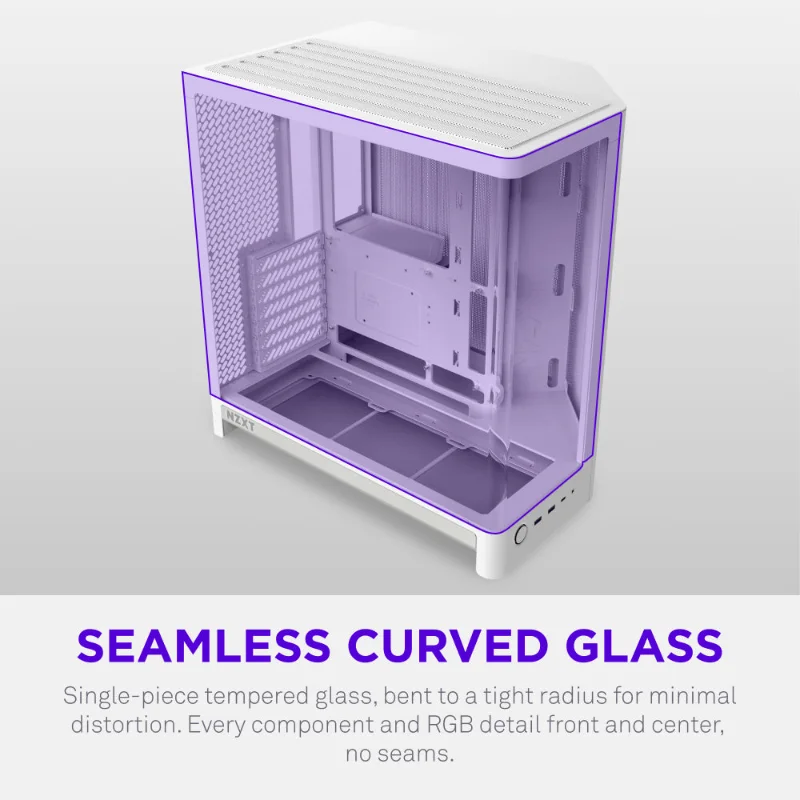

The NZXT H6 RGB+ is the newer H6 platform, combining a compact dual-chamber design with a seamless one-piece curved tempered-glass panel. The tight-radius glass provides a clean panoramic view with minimal visual distortion, while the secondary chamber separates the PSU and cable routing from the primary hardware area.
The RGB+ edition arrives with a substantially upgraded factory cooling configuration. It includes 2 × F360 RGB Reverse fan frames—one at the angled front-right intake and another at the bottom—plus 1 × F120 RGB rear exhaust fan. Because each F360 contains three integrated 120mm fans, the case effectively provides 7 pre-installed 120mm fan positions. A Control Hub Lite is also included for fan and RGB management.

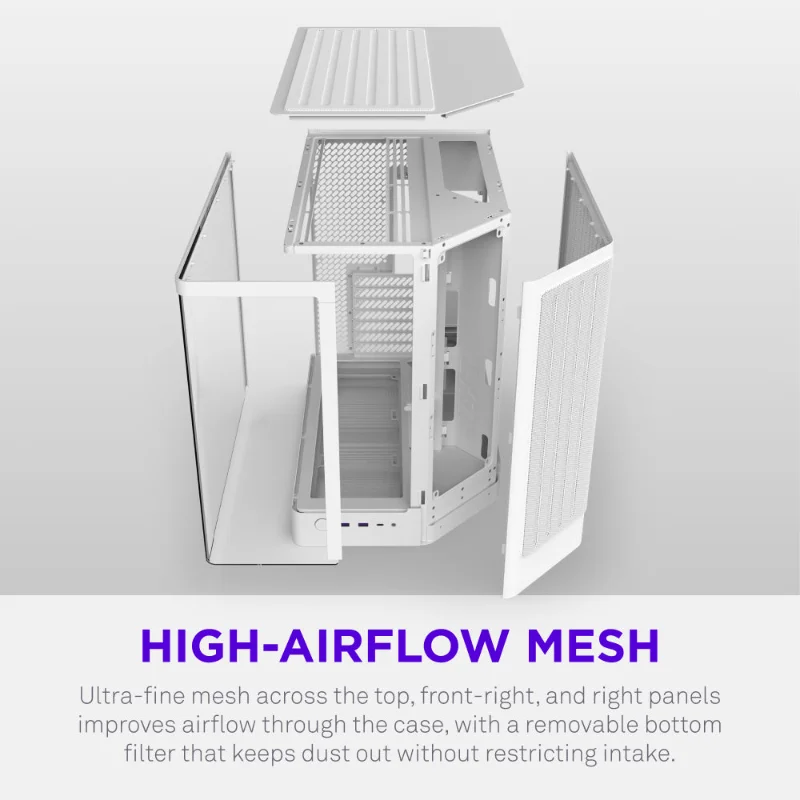

Airflow is optimized through fine mesh across the top, front-right, and right-side panels. The angled front-right intake directs fresh air toward heat-producing components, while the bottom F360 RGB Reverse provides direct airflow toward the graphics card. The chassis supports up to 10 × 120mm fans in total.
For liquid cooling, the top supports radiators up to 360mm, with NZXT specifying a maximum total radiator length of 400mm and up to 67mm combined radiator-and-fan thickness. A 120mm radiator can also be installed at the rear.

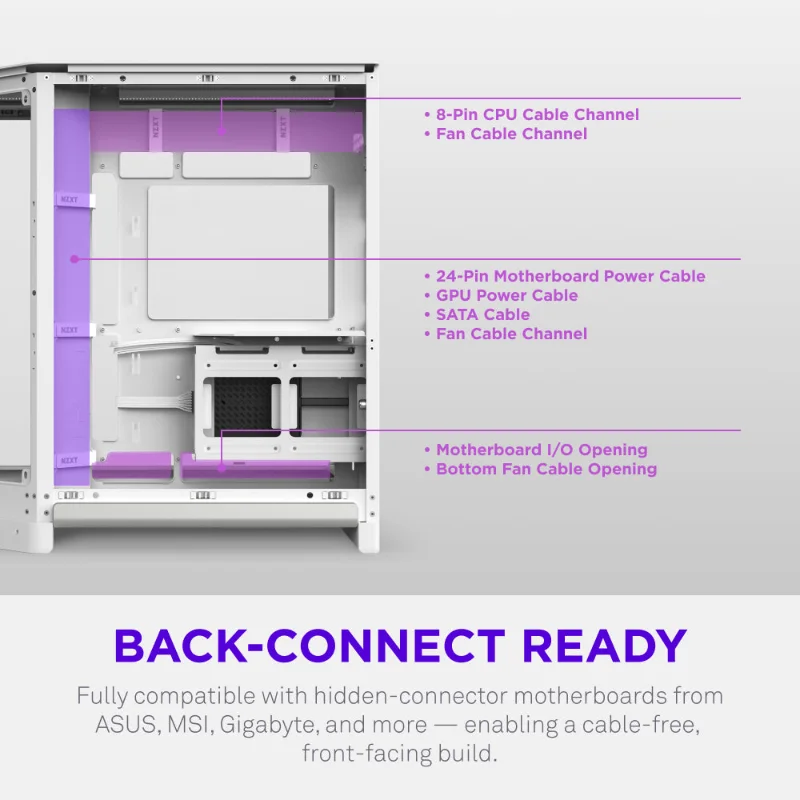

Hardware compatibility includes ATX, Micro-ATX, and Mini-ITX motherboards, plus ATX back-connect motherboards such as ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth. The case supports CPU coolers up to 165mm and ATX power supplies up to 200mm.
NZXT's current product page lists GPU clearance at up to 390mm with a 30mm front-right fan, while its May 2026 H6 technical support sheet lists 360mm with the 30mm front-right fan installed. Because NZXT's own current sources differ on this measurement, GPU clearance should be checked against the latest NZXT compatibility information before selecting a long graphics card.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- 🤍 White RGB+ Edition – CC-H62FW-P1
- 🖥️ Compact 55L Dual-Chamber ATX Design
- 🪟 One-Piece Curved Tempered Glass
- 🌬️ High-Airflow Fine-Mesh Panels
- 🌈 2 × F360 RGB Reverse Fans Included
- 🌈 1 × F120 RGB Rear Fan Included
- 🎛️ NZXT Control Hub Lite Included
- 🌀 Equivalent to 7 Pre-Installed 120mm Fans
- 🌀 Supports Up to 10 × 120mm Fans
- 🎮 Direct Bottom-to-GPU Airflow
- 🛡️ Built-In GPU Anti-Sag Bracket
- 🔲 ATX / Micro-ATX / Mini-ITX
- 🔌 ATX Back-Connect Motherboard Support
- ❄️ Up to 165mm CPU Cooler Height
- 💧 Up to 360mm Top Radiator
- ⚡ ATX PSU Support up to 200mm
- 🧰 Up to 90mm Cable-Routing Space
- 💾 2 × 2.5" + 1 × 3.5" Drive Bays
- 🔌 USB-C 20Gbps + 2 × USB-A
- 🎧 Front Headset Jack
Technical Specifications
| Category | Cases |
| Manufacturer | NZXT |
| Model | CC-H62FW-P1 |
| Case Type | Mid-Tower PC Case |
| Motherboard Support | ATX / Micro-ATX / Mini-ITX |
| GPU Clearance | Please Check Official Specifications |
| Radiator Support | Please Check Official Specifications |
| Included Fans | 7 pre-installed F360 RGB 120mm |
| Front I/O | 2 × USB 3.2 Type-A / 1 × USB 3.2 Gen 2×2 Type-C / Headset Jack |
| PSU | Not Included / Please Check Official Specifications |
| Color | White |
| Warranty | 1 Year Manufacturer Warranty |
