Product Details

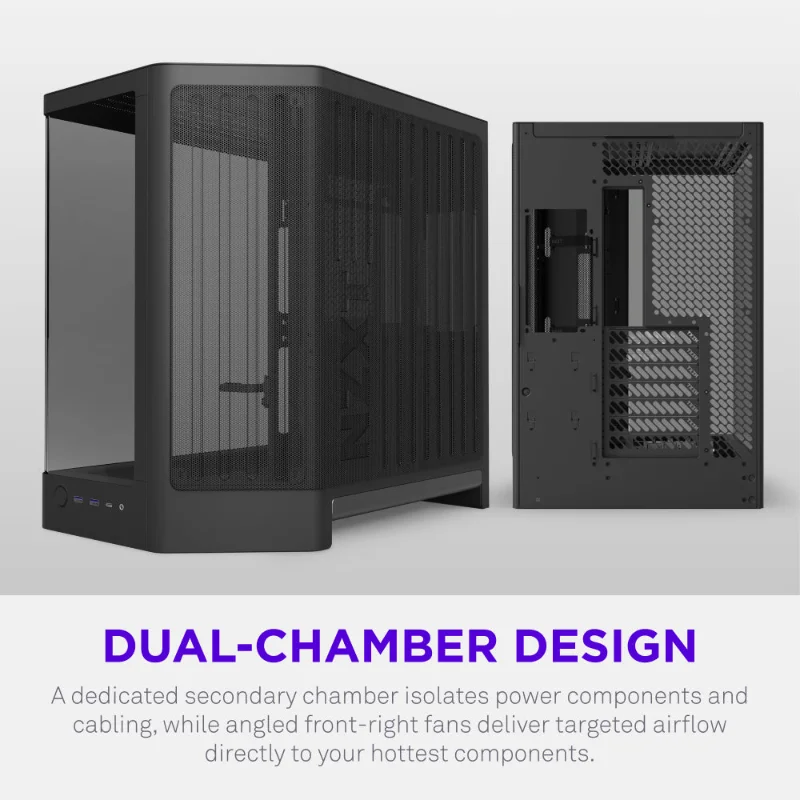

The NZXT H6 RGB+ Black is part of NZXT's redesigned 2026 H6 series. Its compact dual-chamber layout separates the power supply and cable routing from the primary component area, helping create a cleaner build while keeping airflow focused on the CPU and graphics card.

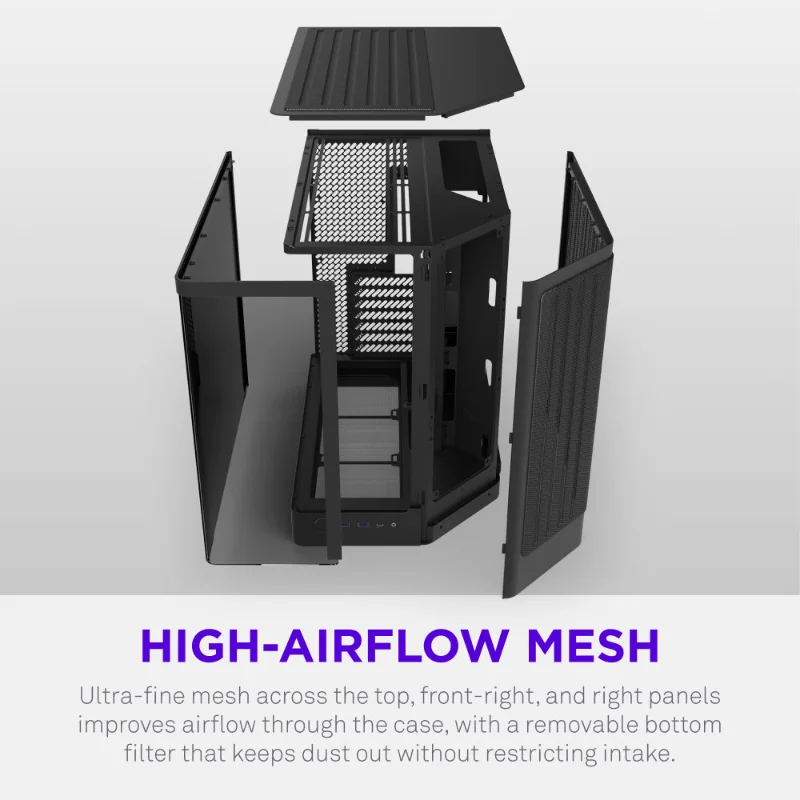

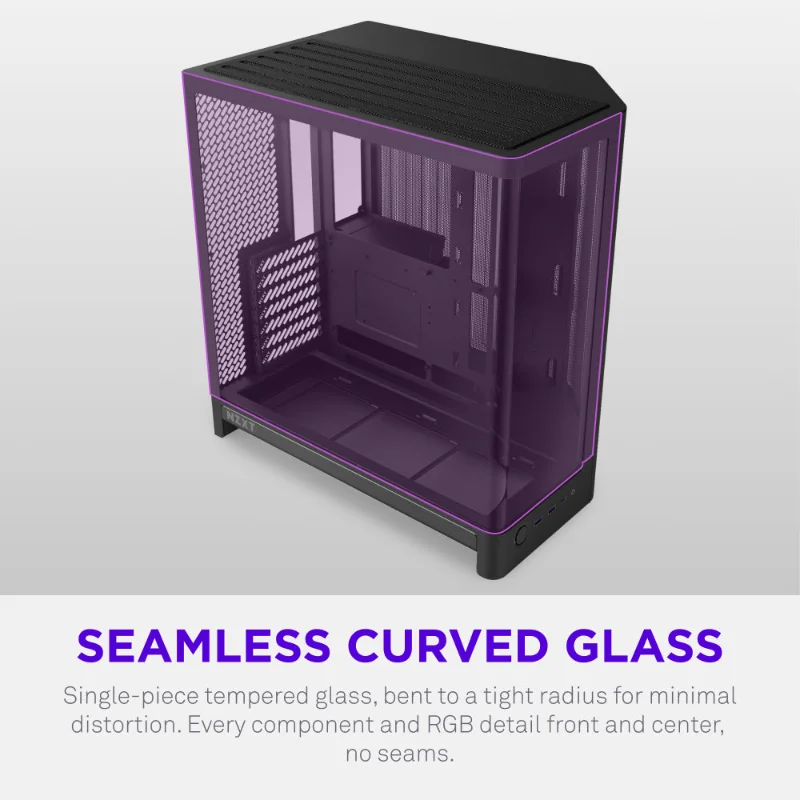

A major visual upgrade is the one-piece curved tempered-glass panel. NZXT uses a tight bend radius to create a seamless panoramic view with minimal visual distortion, replacing the two-piece glass design of the previous H6 generation. High-airflow fine mesh is used across the top, front-right, and right-side panels.

The RGB+ edition comes with an extensive factory cooling setup: 2 × F360 RGB Reverse units and 1 × F120 RGB rear fan. Each F360 integrates three 120mm fans, meaning the case provides the equivalent of 7 pre-installed 120mm fans. NZXT also includes a Control Hub Lite for RGB and fan control.

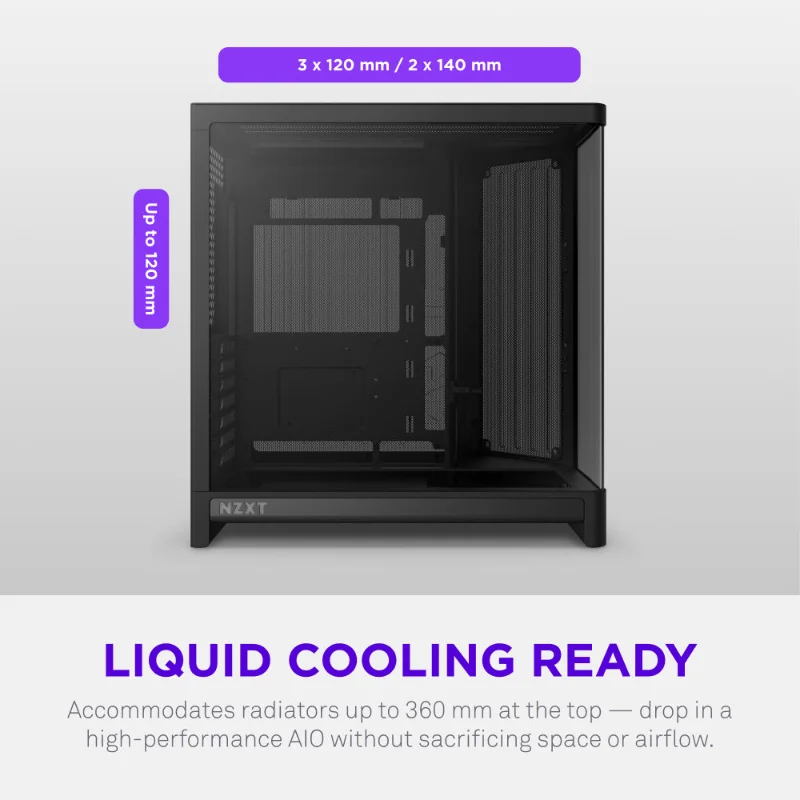

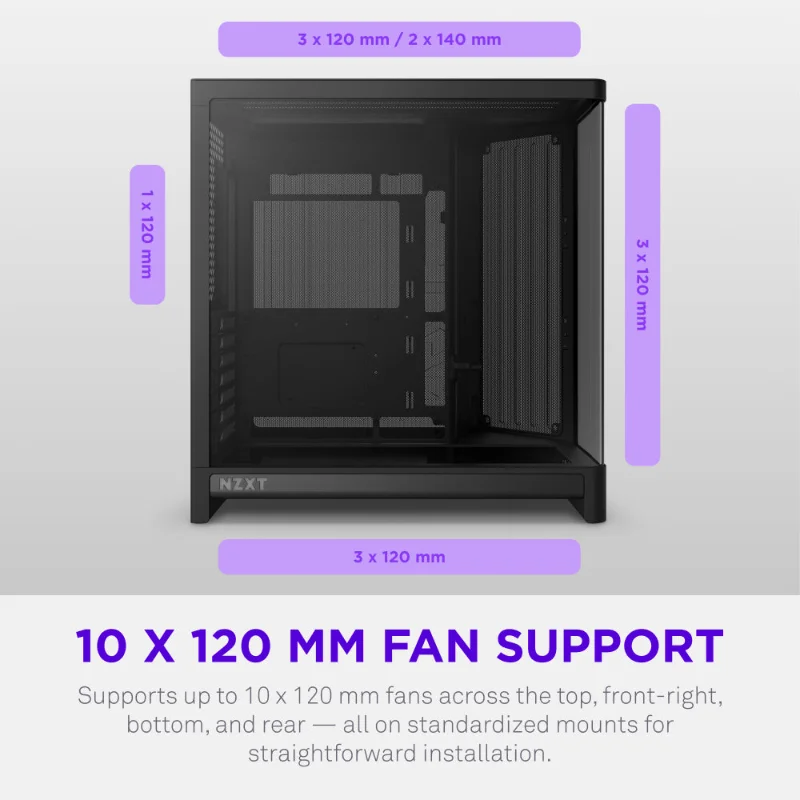

Cooling expansion supports up to 10 × 120mm fans, with three positions each at the front-right, top, and bottom, plus one 120mm rear position. Liquid cooling support includes a 360mm top radiator with up to 400mm total radiator length and up to 67mm combined radiator-and-fan thickness, plus a 120mm rear radiator.

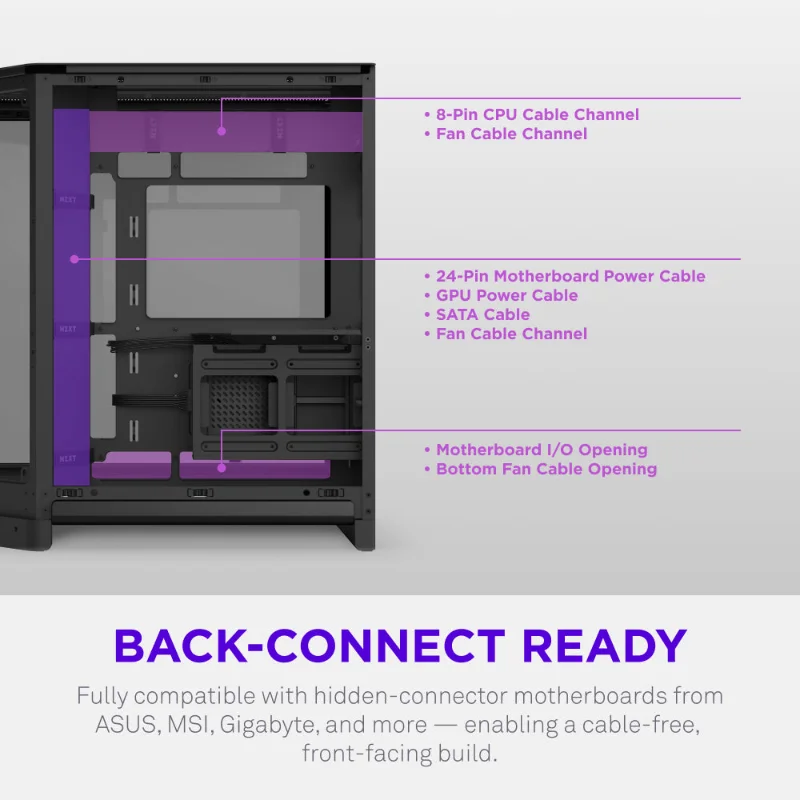

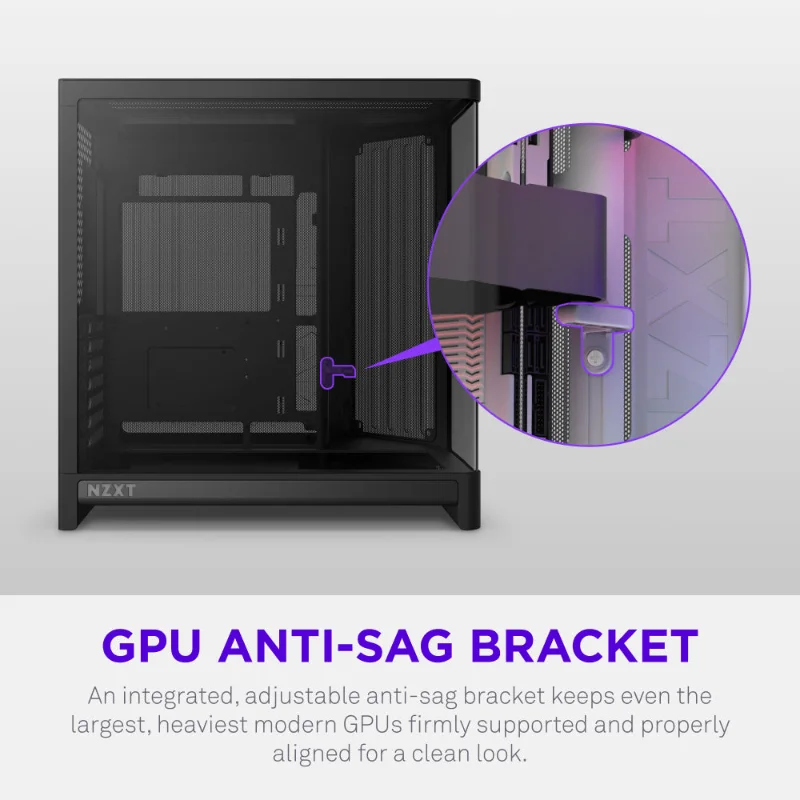

The H6 RGB+ supports ATX, Micro-ATX, and Mini-ITX motherboards, including ATX back-connect motherboards such as ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth. It also provides a built-in adjustable GPU anti-sag bracket for modern high-end graphics cards.

Component clearance includes CPU air coolers up to 165mm and ATX power supplies up to 200mm. NZXT's current retail page states GPU clearance of up to 390mm with a 30mm front-right fan, although its 2026 support specification currently states 360mm with that fan installed. Because NZXT's own current sources differ, GPU clearance should be verified for especially long graphics cards.

Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.

Key Features

• 🖤 Black RGB+ Edition – CC-H62FB-P1
• 🖥️ Compact 55L Dual-Chamber Design
• 🪟 Seamless One-Piece Curved Tempered Glass
• 🌬️ High-Airflow Fine-Mesh Panels
• 🌈 6 × F360 RGB Reverse Units Pre-Installed
• 🌈 1 × F120 RGB Rear Fan Pre-Installed
• 🌀 Equivalent to 7 Pre-Installed 120mm Fans
• 🎛️ NZXT Control Hub Lite Included
• 🌀 Supports Up to 10 × 120mm Fans
• 🎮 Direct Bottom-to-GPU Cooling
• 🛡️ Integrated GPU Anti-Sag Bracket
• 🔲 ATX / Micro-ATX / Mini-ITX
• 🔌 ATX Back-Connect Motherboard Support
• ❄️ Up to 165mm CPU Cooler Clearance
• 💧 Up to 360mm Top Radiator
• ⚡ ATX PSU Support up to 200mm
• 🧰 Up to 90mm Cable-Routing Depth
• 💾 2 × 2.5" + 1 × 3.5" Drive Bays
• 🔌 USB-C 20Gbps + 2 × USB-A
• 🎧 3.5mm Headset Jack
