NZXT H6 Compact Dual-Chamber ATX Airflow Case – White | CC-H62FW-01
The NZXT H6 White (CC-H62FW-01) is a compact 55L dual-chamber ATX gaming case featuring seamless curved tempered glass, ultra-fine airflow mesh, back-connect motherboard support, and flexible high-performance cooling. It supports GPUs up to 390mm, CPU coolers up to 165mm, up to 10 × 120mm fans, and a 360mm top radiator.
Product Overview

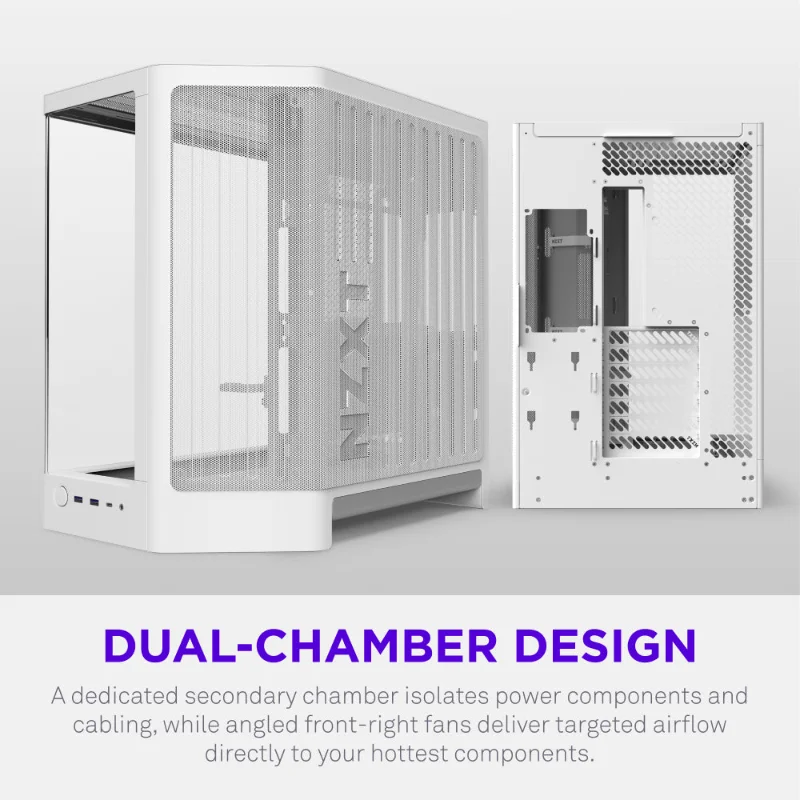

The NZXT H6 White is the standard non-RGB+ version of NZXT's redesigned H6 platform. Its compact dual-chamber layout separates the PSU, storage, and cable routing from the primary component area, helping create a clean showcase build while maintaining efficient airflow around the CPU and GPU.

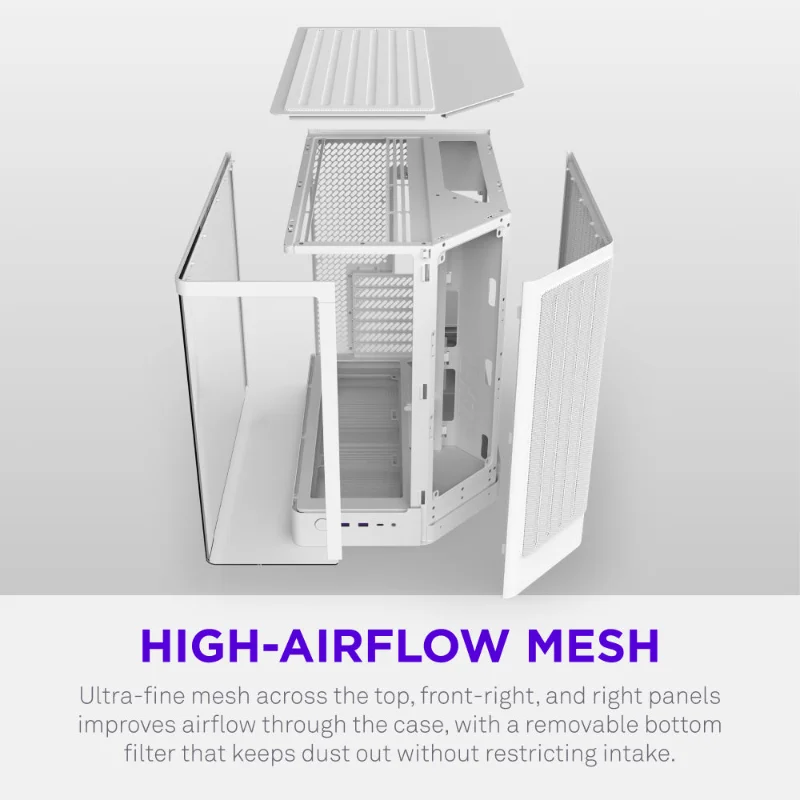

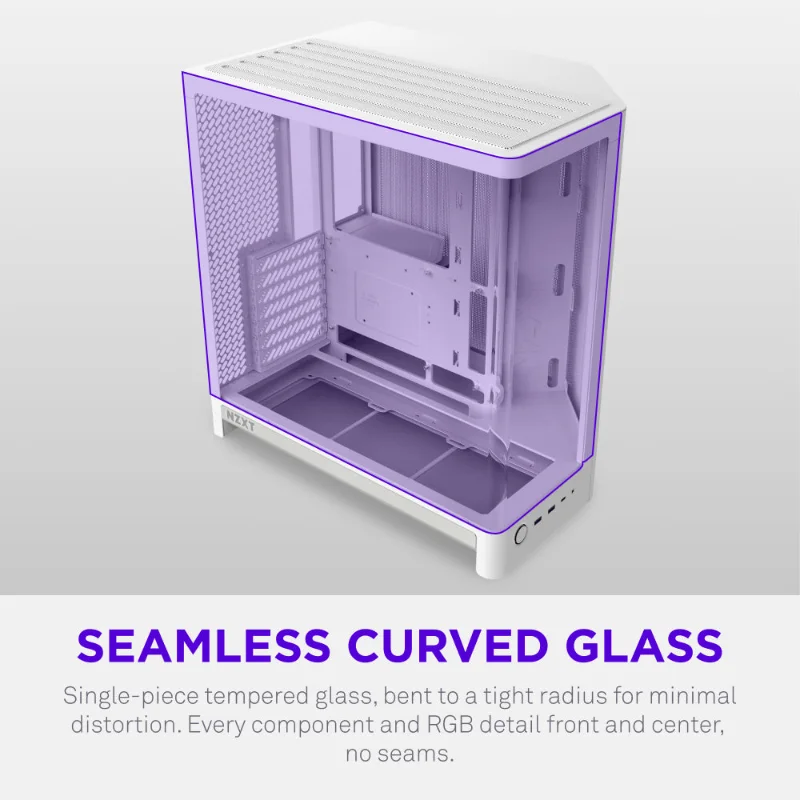

A key visual feature is the one-piece curved tempered-glass panel, which provides a seamless panoramic view of the system. The chassis combines this glass display area with ultra-fine mesh across the top, front-right, and right-side panels to improve ventilation without compromising the clean exterior design.

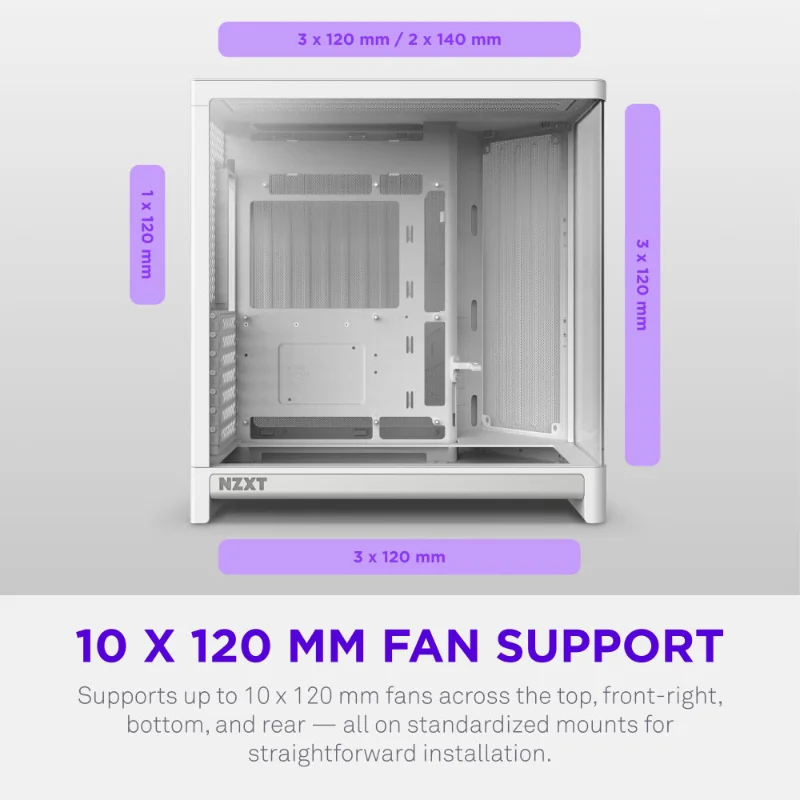

Cooling capacity is extensive for a 55L chassis. The H6 supports 3 × 120mm fans at the front-right, 3 × 120mm at the top, 3 × 120mm at the bottom, and 1 × 120mm at the rear, providing a total of 10 fan mounting positions. The standard H6 ships without pre-installed fans, giving builders complete freedom to choose their preferred cooling and RGB configuration.

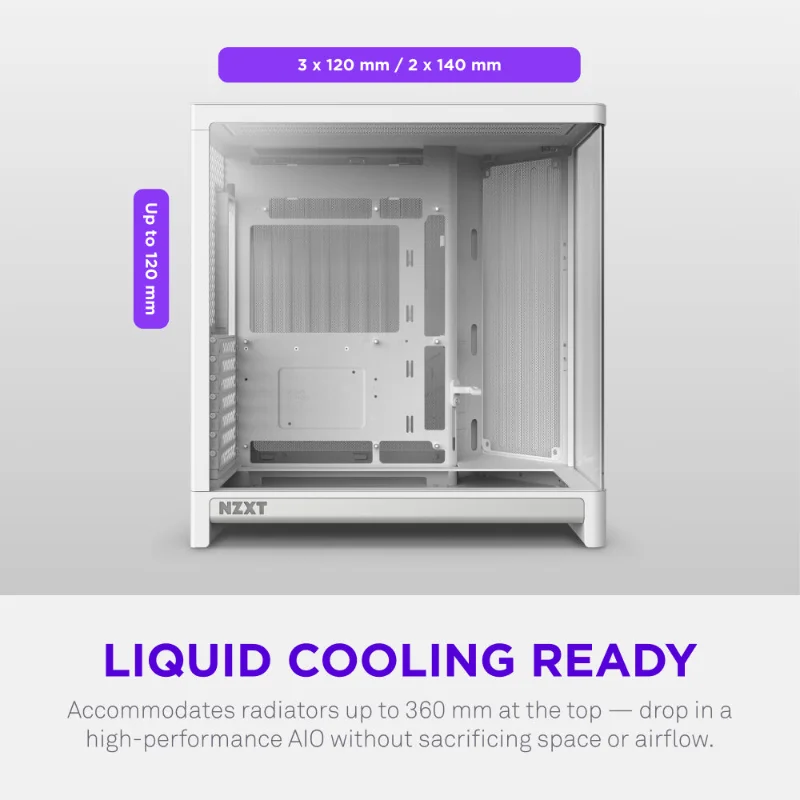

Liquid-cooling support includes a top radiator up to 360mm, with NZXT specifying up to 400mm total radiator length and a maximum 67mm combined radiator-and-fan thickness. A 120mm radiator is also supported at the rear.

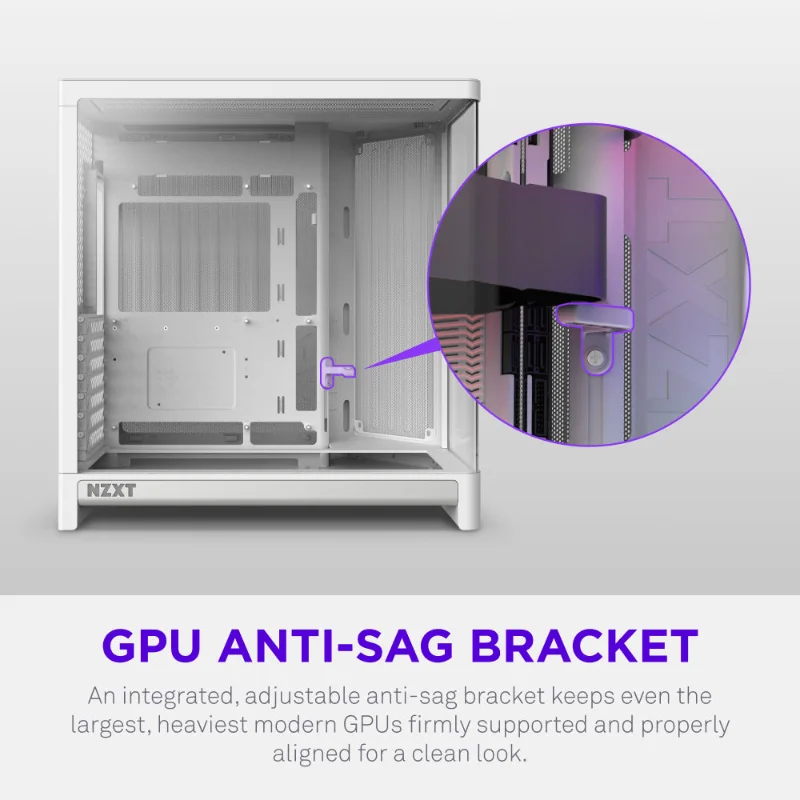

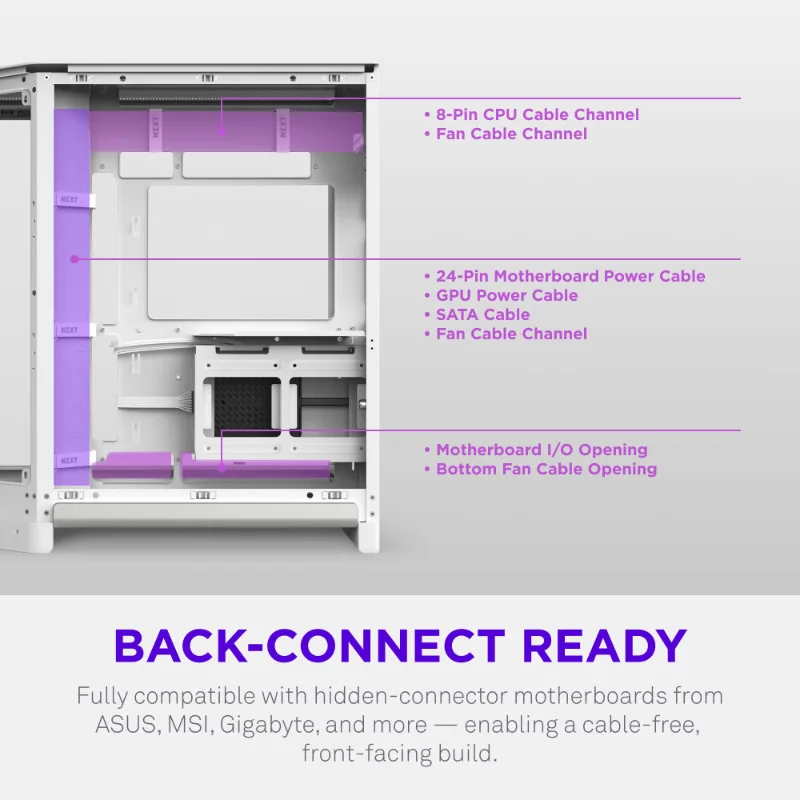

The chassis supports ATX, Micro-ATX, and Mini-ITX motherboards, including ATX back-connect motherboards. NZXT specifically highlights compatibility with hidden-connector platforms such as ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth. An integrated adjustable GPU anti-sag bracket helps support heavy modern graphics cards.
Component clearance includes graphics cards up to 390mm with a 30mm front-right fan, CPU air coolers up to 165mm, ATX power supplies up to 200mm, and up to 90mm of cable-routing space in the secondary chamber.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- 🤍 White Edition – CC-H62FW-01
- 🖥️ Compact 55L Dual-Chamber Design
- 🪟 One-Piece Curved Tempered Glass
- 🌬️ Ultra-Fine High-Airflow Mesh
- 🌀 Supports Up to 10 × 120mm Fans
- 🎮 Angled Front-Right Airflow
- 🎮 Bottom Fan Positions for Direct GPU Cooling
- 🛡️ Integrated Adjustable GPU Anti-Sag Bracket
- 🔲 ATX / Micro-ATX / Mini-ITX
- 🔌 ATX Back-Connect Motherboard Support
- 🎮 Up to 390mm GPU Clearance
- ❄️ Up to 165mm CPU Cooler Height
- 💧 Up to 360mm Top Radiator
- ⚡ ATX PSU Support up to 200mm
- 🧰 Up to 90mm Cable-Routing Space
- 💾 2 × 2.5" + 1 × 3.5" Drive Bays
- 🔌 USB 3.2 Gen 2×2 Type-C
- 🔌 2 × USB 3.2 Type-A
- 🧹 Removable Bottom Nylon Dust Filter
- 🚫 No Pre-Installed Fans
Technical Specifications
| Category | Cases |
| Manufacturer | NZXT |
| Model | CC-H62FW-01 |
| Case Type | Mid-Tower PC Case |
| Motherboard Support | ATX / Micro-ATX / Mini-ITX |
| GPU Clearance | Please Check Official Specifications |
| Radiator Support | Please Check Official Specifications |
| Included Fans | None |
| Front I/O | 2 × USB 3.2 Type-A / 1 × USB 3.2 Gen 2×2 Type-C / Headset Jack |
| PSU | Not Included / Please Check Official Specifications |
| Color | White |
| Warranty | 1 Year Manufacturer Warranty |
