NZXT H6 Compact Dual-Chamber ATX Airflow Case – Black | CC-H62FB-01

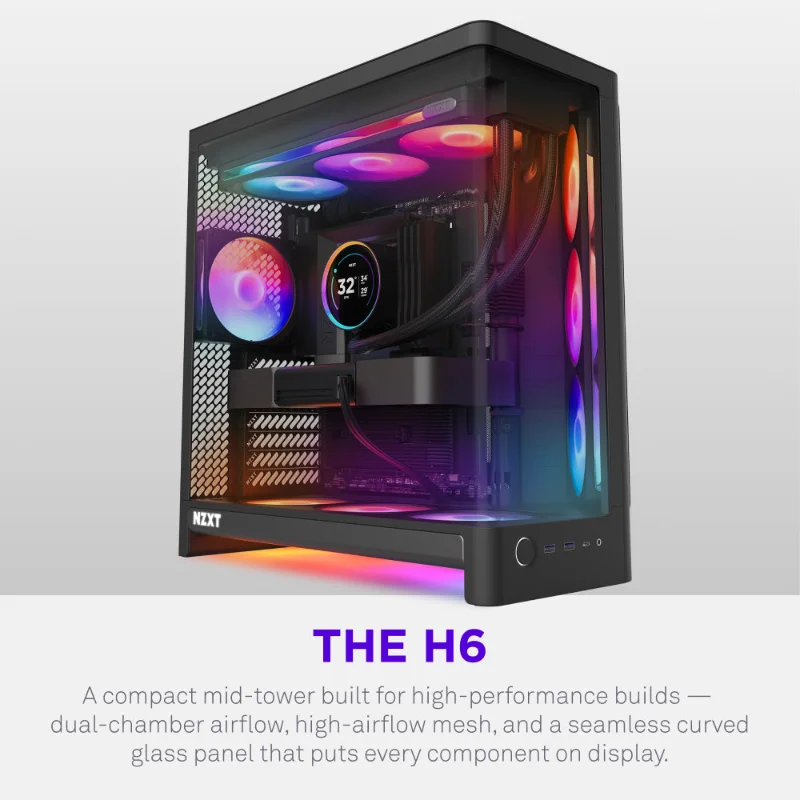

The NZXT H6 Black (CC-H62FB-01) is a compact 55L dual-chamber ATX mid-tower case featuring seamless curved tempered glass, high-airflow mesh, back-connect motherboard compatibility, and flexible cooling support. It accommodates up to 10 × 120mm fans, a 360mm top radiator, GPUs up to 390mm, CPU coolers up to 165mm, and ATX power supplies up to 200mm.
Product Overview

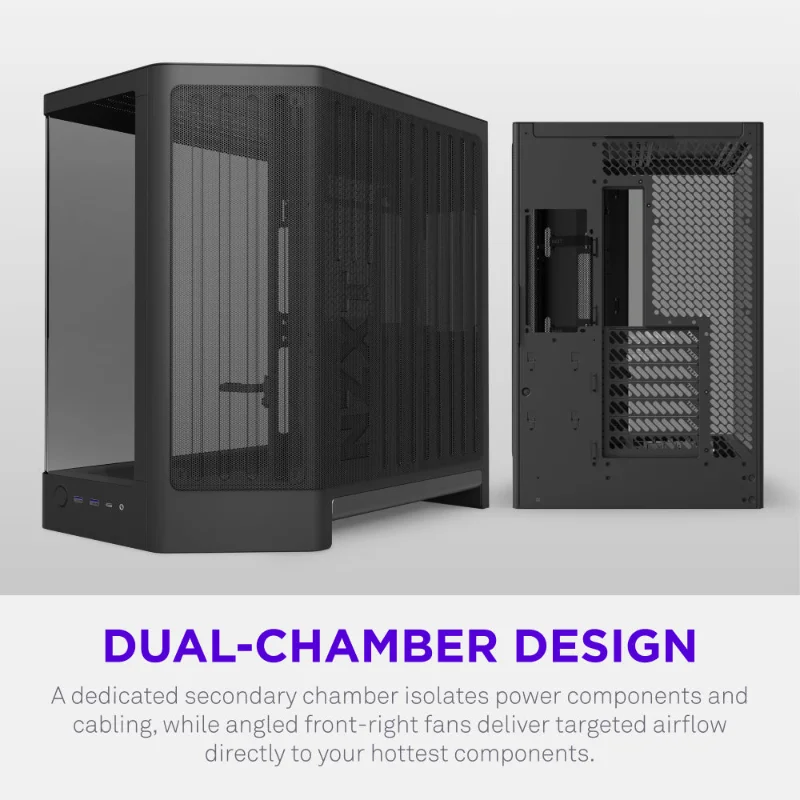

The NZXT H6 Black is the standard version of NZXT's redesigned H6 series, combining a compact dual-chamber layout with modern airflow and component compatibility. The secondary chamber isolates the power supply and cable routing from the primary component area, helping create a cleaner build while keeping the main cooling path unobstructed.

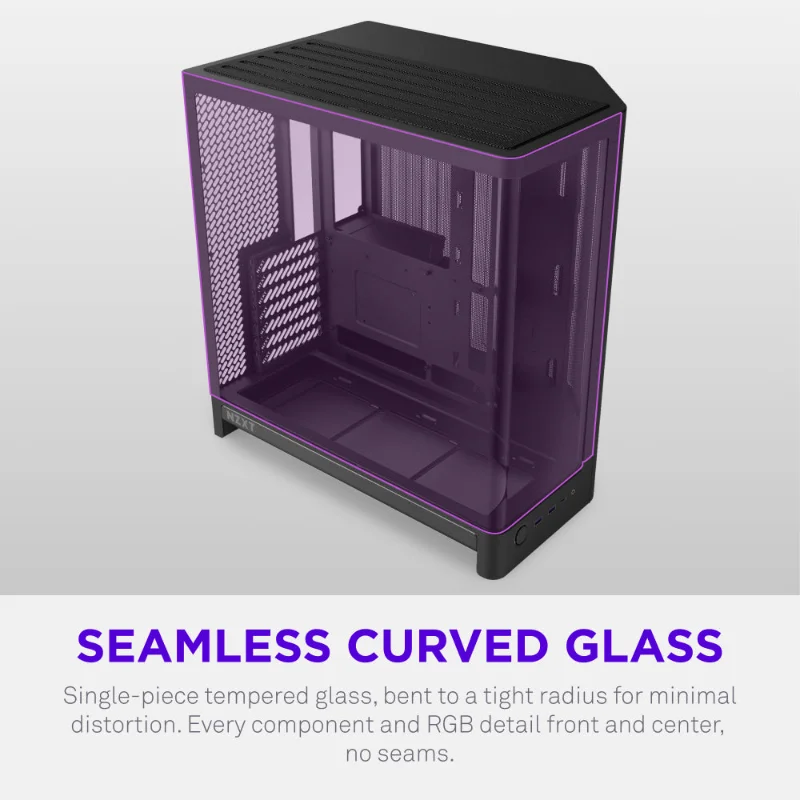

A major visual feature is the one-piece curved tempered-glass panel. Its tight-radius bend provides a seamless panoramic view of the internal components with minimal visual distortion, replacing the two-piece glass arrangement found on the previous-generation H6.

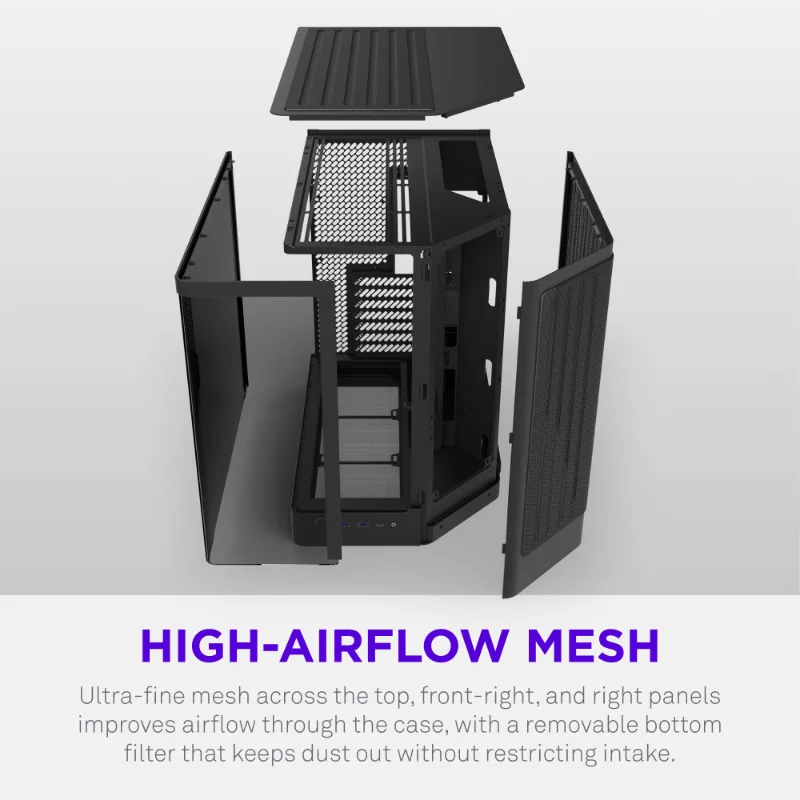

For airflow, NZXT uses fine mesh across the top, front-right, and right-side panels. The angled front-right mounting area is designed to direct fresh airflow toward heat-generating components, while bottom fan positions can provide additional direct airflow toward the graphics card.

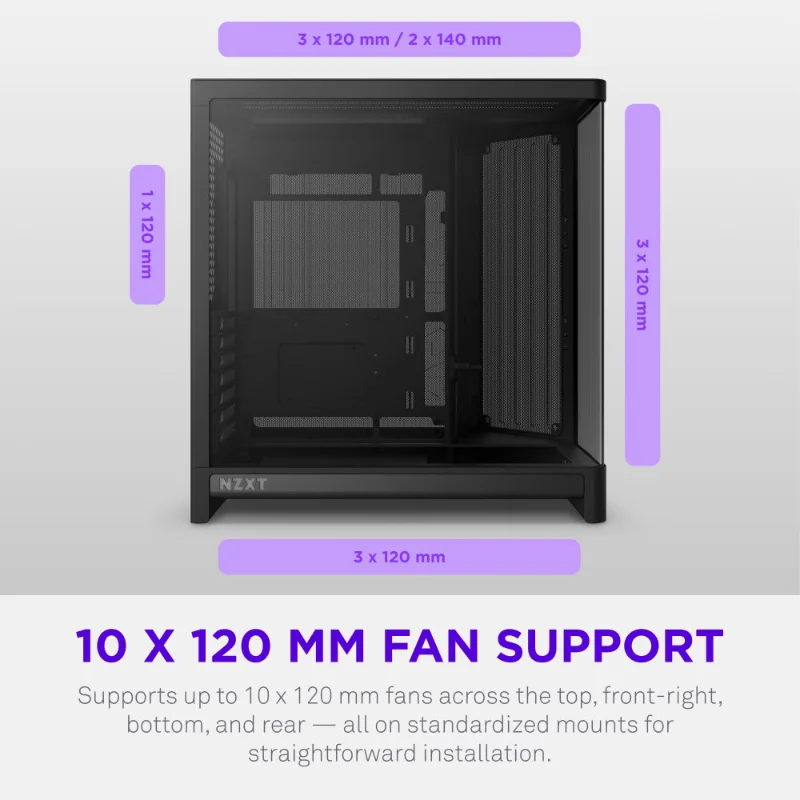

Cooling capacity includes 3 × 120mm fans at the front-right, 3 × 120mm at the top, 3 × 120mm at the bottom, and 1 × 120mm at the rear, giving the chassis a maximum capacity of 10 × 120mm fans. Unlike the H6 RGB+, the standard H6 does not include any fans, allowing the builder to choose their own cooling and lighting setup.

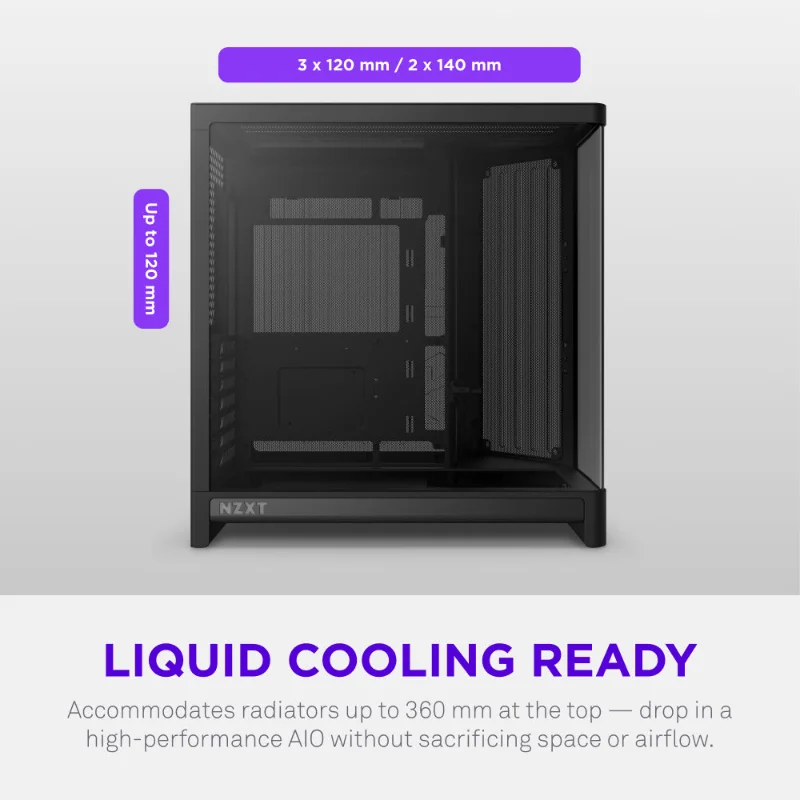

Liquid cooling support includes a top radiator up to 360mm, with a maximum total radiator length of 400mm and up to 67mm combined radiator-and-fan thickness. The rear also supports a 120mm radiator.

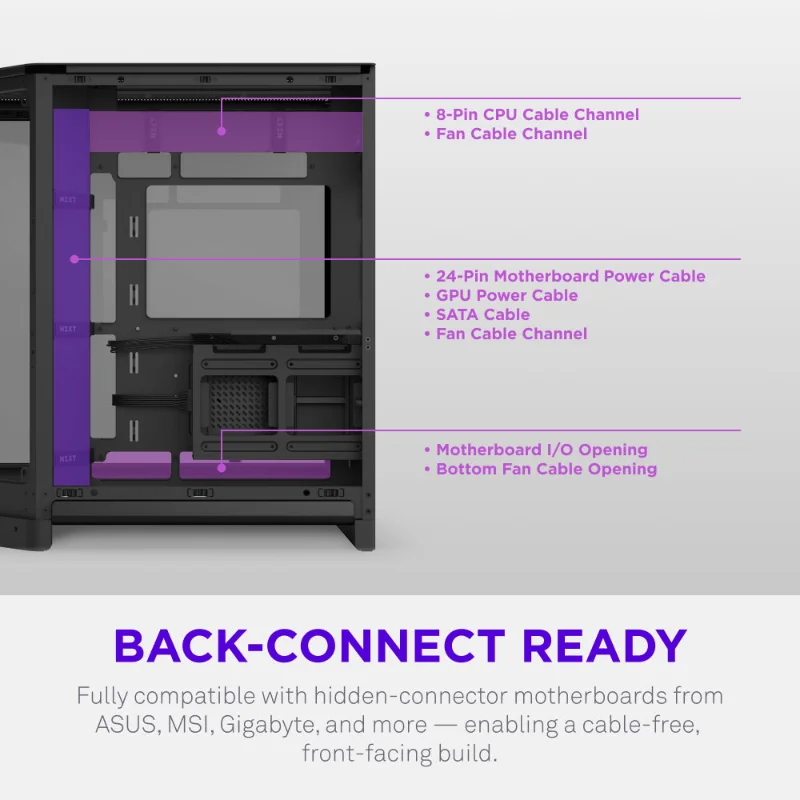

The H6 supports ATX, Micro-ATX, and Mini-ITX motherboards, including ATX back-connect designs such as BTF, Project Zero, and Project Stealth. It provides GPU clearance up to 390mm according to NZXT's current product page, CPU cooler clearance up to 165mm, and ATX PSU support up to 200mm.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- 🖤 Black Edition – CC-H62FB-01
- 🖥️ Compact 55L Dual-Chamber ATX Design
- 🪟 One-Piece Curved Tempered Glass
- 🌬️ High-Airflow Fine-Mesh Panels
- 🌀 Supports Up to 10 × 120mm Fans
- 🎮 Angled Front-Right Airflow Design
- 🎮 Dedicated Bottom GPU Cooling Positions

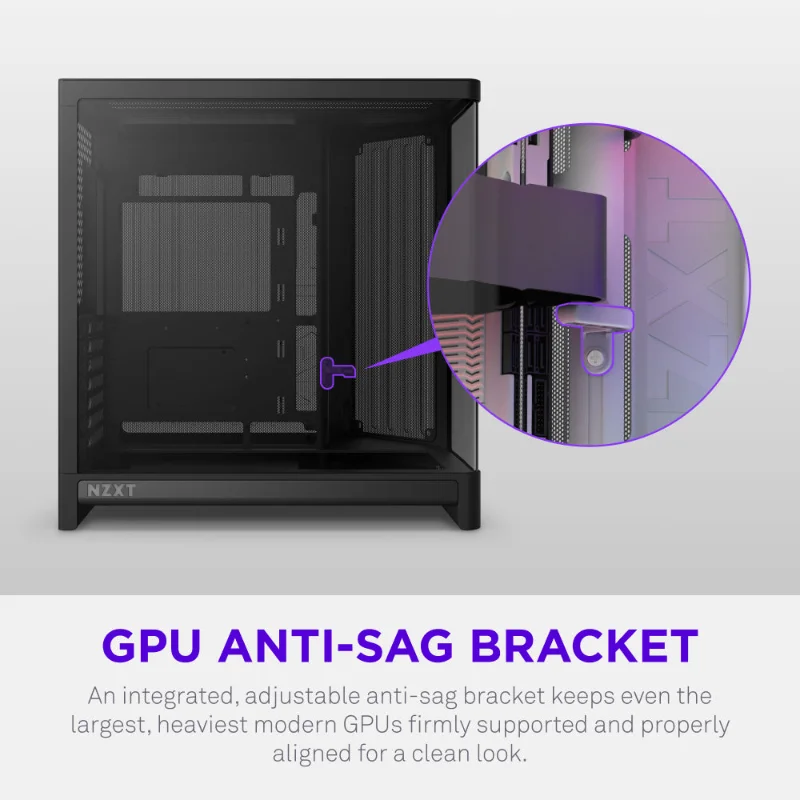

- 🛡️ Built-In Adjustable GPU Anti-Sag Bracket
- 🔲 ATX / Micro-ATX / Mini-ITX Support
- 🔌 ATX Back-Connect Motherboard Support
- 🎮 Up to 390mm GPU Clearance*
- ❄️ Up to 165mm CPU Cooler Height
- 💧 Up to 360mm Top Radiator
- ⚡ ATX PSU Support up to 200mm
- 🧰 Up to 90mm Cable-Routing Space
- 💾 2 × 2.5" + 1 × 3.5" Drive Bays
- 🔌 USB 3.2 Gen 2×2 Type-C 20Gbps
- 🔌 2 × USB 3.2 Type-A
- 🧹 Removable Bottom Nylon Dust Filter
- 🚫 No Pre-Installed Fans
Technical Specifications
| Category | Cases |
| Manufacturer | NZXT |
| Model | CC-H62FB-01 |
| Case Type | Mid-Tower PC Case |
| Motherboard Support | ATX / Micro-ATX / Mini-ITX |
| GPU Clearance | Please Check Official Specifications |
| Radiator Support | Please Check Official Specifications |
| Included Fans | None |
| Front I/O | 2 × USB 3.2 Type-A / 1 × USB 3.2 Gen 2×2 Type-C / Headset Jack |
| PSU | Not Included / Please Check Official Specifications |
| Color | Black |
| Warranty | 1 Year Manufacturer Warranty |
