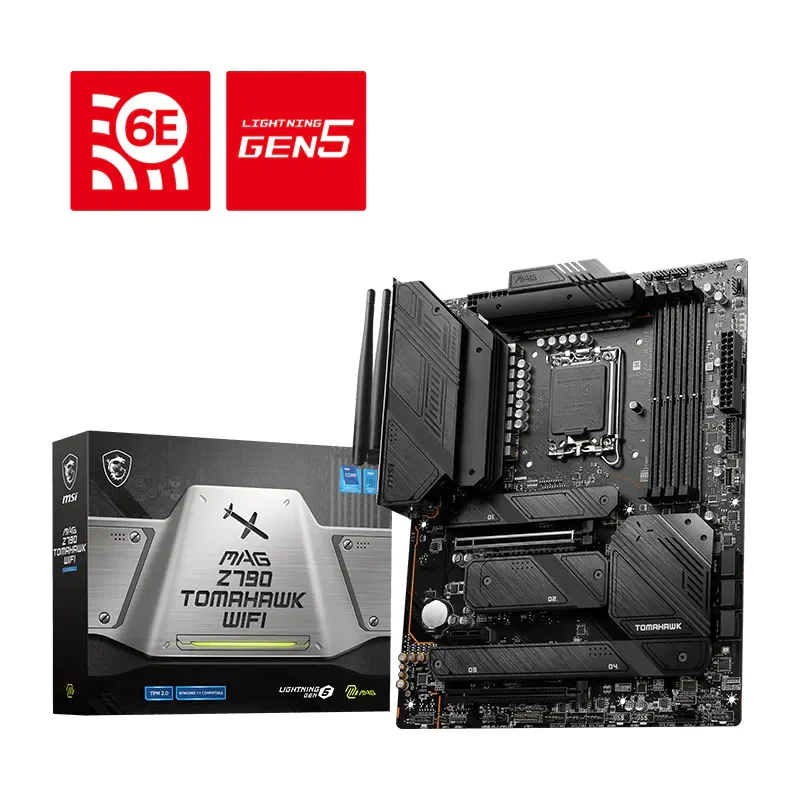

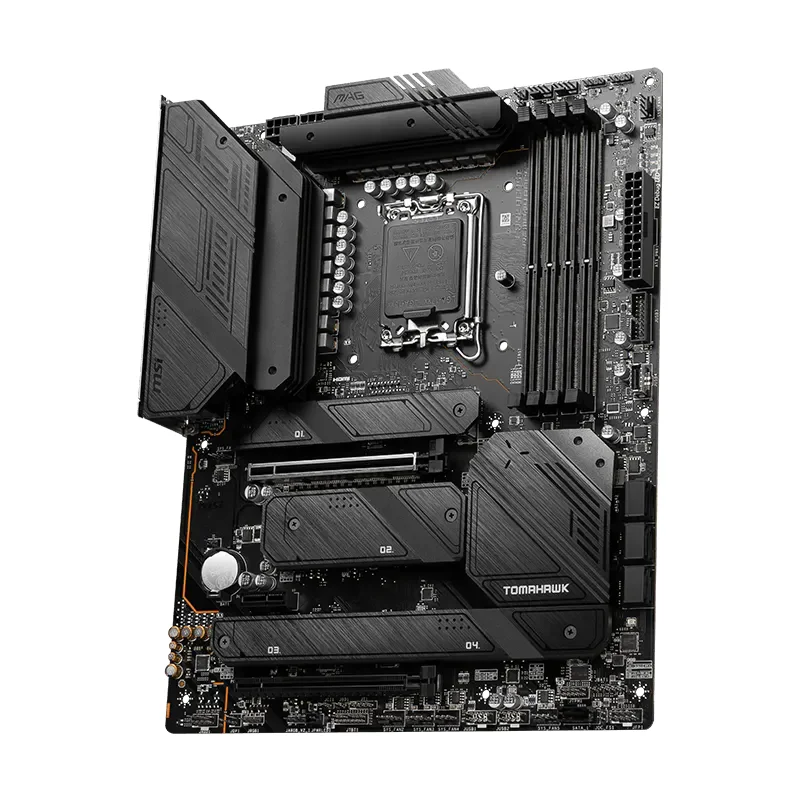

MSI MAG Z790 TOMAHAWK WIFI Motherboard
The MSI MAG Z790 TOMAHAWK WIFI is a premium ATX motherboard built for Intel® Core™ 14th, 13th, and 12th Gen processors. Powered by the Intel® Z790 chipset, it features DDR5 memory support, PCIe® 5.0, Wi-Fi 6E, Intel® 2.5G LAN, and four Lightning Gen4 M.2 slots, making it an excellent choice for gaming, content creation, streaming, and high-performance desktop builds.
Product Overview
The MSI MAG Z790 TOMAHAWK WIFI is engineered to deliver exceptional performance, stability, and connectivity for Intel LGA1700 systems. Featuring the Intel® Z790 chipset, it supports Intel® Core™ 14th, 13th, and 12th Gen processors together with DDR5 memory up to 7200+ MT/s (OC). Equipped with a PCIe® 5.0 x16 graphics slot, four Lightning Gen4 M.2 slots, Intel® Wi-Fi 6E, Bluetooth® 5.3, Intel® 2.5G LAN, and USB 3.2 Gen 2x2 20Gbps Type-C, it provides outstanding speed and reliability for gaming, streaming, content creation, and demanding productivity workloads. MSI's robust thermal design, premium power delivery, and Audio Boost 5 technology ensure long-lasting performance and an exceptional user experience.
Key Features
- ⚡ Supports Intel® Core™ 14th, 13th & 12th Gen Processors
- 🚀 Powered by the Intel® Z790 Chipset with LGA1700 Socket
- 💾 Supports up to 256GB DDR5 Memory with speeds up to 7200+ MT/s (OC)
- 🎮 PCIe® 5.0 x16 slot for next-generation graphics cards
- ⚙️ 4× Lightning Gen4 M.2 slots for ultra-fast NVMe SSDs
- 🌐 Built-in Intel® Wi-Fi 6E, Bluetooth® 5.3, and Intel® 2.5G LAN

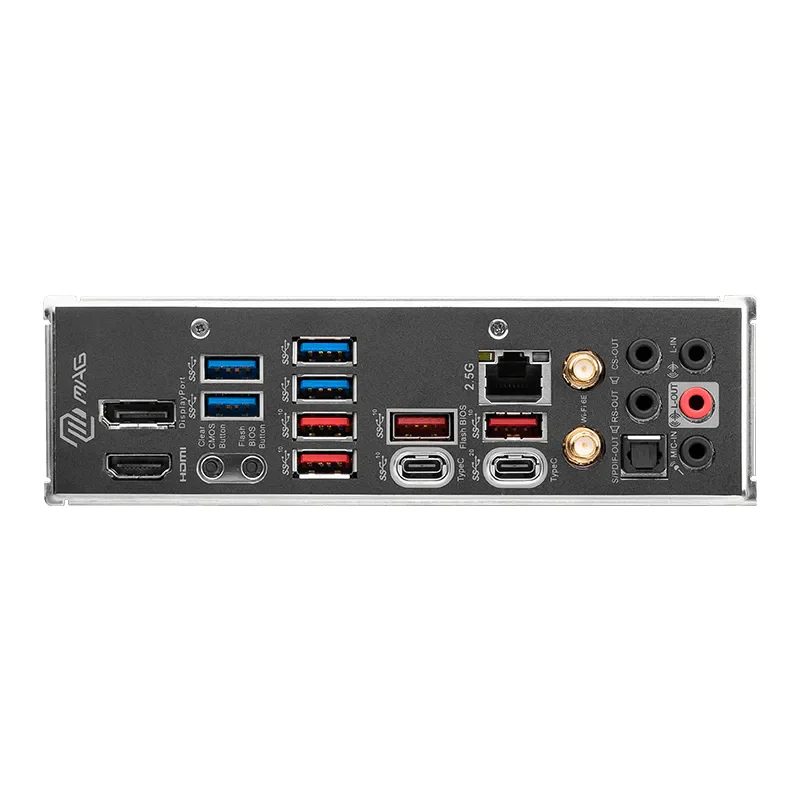

- 🔌 Features USB 3.2 Gen 2x2 20Gbps Type-C and multiple high-speed USB ports
- ❄️ 16+1+1 Duet Rail Power System, Extended Heatsink Design, and M.2 Shield FROZR
- 🛡️ Flash BIOS Button, Clear CMOS Button, EZ Debug LEDs, Core Boost, and Memory Boost
- 🔊 Audio Boost 5 with Realtek® ALC4080 high-definition audio
- 🧩 Ideal for gaming, streaming, content creation, and enthusiast desktop builds
- 📐 ATX Form Factor for excellent expansion and upgrade flexibility
- ✅ Supports Windows® 11 64-bit and Windows® 10 64-bit
Technical Specifications
| Category | Motherboard |
| Manufacturer | MSI |
| Model | MSI MAG Z790 TOMAHAWK WIFI |
| Socket | LGA1700 |
| Chipset | Intel Z790 |
| Memory Support | 4× DDR5, Up to 256GB, 7200+ MT/s (OC) |
| Form Factor | ATX |
| Storage | 4× M.2 PCIe 4.0, 7× SATA 6Gb/s |
| CPU Support | Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® Processors |
| Networking | Intel® Wi-Fi 6E, Bluetooth® 5.3, Intel® 2.5G LAN |
| PCIe Support | PCIe 5.0 |
| Warranty | 1 Year Manufacturer Warranty |
