LIAN LI O11 VISION-M Dual-Chamber Micro-ATX Case – Black | O11VMX
The LIAN LI O11 VISION-M Black (O11VMX) is a compact dual-chamber Micro-ATX showcase case featuring three-sided tempered glass, a mesh-integrated top glass panel, and a pre-installed 140mm PWM fan in the second chamber. It supports GPUs up to 410mm, CPU coolers up to 162mm, ATX PSUs, up to 12 × 120mm fans, and a top-mounted 360mm radiator.
Product Overview
The LIAN LI O11 VISION-M brings the panoramic design of the O11 Vision series into a more compact Micro-ATX dual-chamber chassis. Three-sided tempered glass provides an expansive view of the internal components, making it particularly suitable for premium RGB and showcase gaming builds.
Unlike traditional glass-top showcase cases, the O11 VISION-M incorporates a mesh cutout into the top glass panel, allowing a 360mm radiator to be mounted at the top while maintaining the case's panoramic appearance. A modular divider can conceal the AIO radiator for a cleaner presentation or be removed when builders prefer to display the cooling hardware.
The chassis supports Micro-ATX and Mini-ITX motherboards, graphics cards up to 410mm, CPU air coolers up to 162mm, and ATX power supplies under 182mm long. A built-in adjustable GPU anti-sag bracket helps provide additional support for large graphics cards.

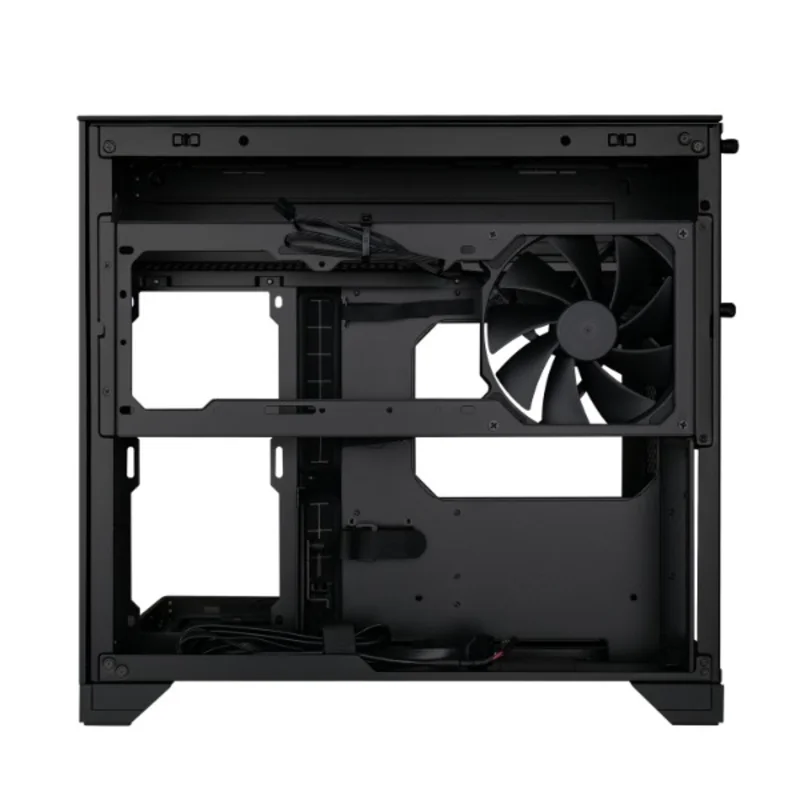

Cooling flexibility is extensive for a compact chassis. The top supports 3 × 120mm fans, the side supports 2 × 120mm, the bottom supports 3 × 120mm, and the rear supports 2 × 120mm. The second chamber accommodates an additional two 120mm fans alongside the pre-installed 140mm PWM fan, enabling configurations with up to 12 × 120mm fans.
Liquid cooling support includes a 360mm or 240mm top radiator and up to a 240mm side radiator. The dedicated second-chamber fan helps provide additional CPU-area airflow and improve liquid-cooling efficiency.
Front connectivity includes 2 × USB 3.0 Type-A, 1 × USB 3.2 Type-C, and an audio connection. Toolless panel access and removable top, bottom, and second-chamber fan brackets are designed to simplify installation and maintenance.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- 🖤 Premium Black Edition
- 🖥️ Compact Dual-Chamber Micro-ATX Design
- 🪟 Three-Sided Panoramic Tempered Glass
- 🌬️ Mesh-Integrated Top Glass Panel
- 🌀 Pre-Installed 140mm PWM Fan
- 🔲 Micro-ATX / Mini-ITX Motherboard Support
- 🎮 Up to 410mm GPU Clearance
- 🛡️ Built-In Adjustable GPU Anti-Sag Bracket
- ❄️ Up to 162mm CPU Cooler Height
- 💧 Up to 360mm Top Radiator
- 💧 Up to 240mm Side Radiator
- 🌀 Supports Up to 12 × 120mm Fans
- ⚡ Standard ATX PSU Support
- 🧩 Modular AIO Divider
- 🧰 Toolless Panel Access
- 🔧 Removable Cooling Brackets
- 💾 Up to 3 Storage Drives
- 🔌 USB 3.2 Type-C + 2 × USB Type-A
Technical Specifications
| Category | Cases |
| Manufacturer | Lian Li |
| Model | O11 Vision Compact Black |
| Case Type | Panoramic / Performance Case |
| Motherboard Support | Micro-ATX / Mini-ITX |
| GPU Clearance | Please Check Official Specifications |
| Radiator Support | Please Check Official Specifications |
| Included Fans | 1 × 140mm PWM |
| Front I/O | 2 × USB Type-A / 1 × USB Type-C / Audio |
| PSU | Not Included / Please Check Official Specifications |
| Color | Black |
| Warranty | 1 Year Manufacturer Warranty |
