LIAN LI O11 VISION-M Digital Dual-Chamber Micro-ATX Case with 9.2" LCD – Black | O11VMDX
The LIAN LI O11 VISION-M Digital Black (O11VMDX) is a compact dual-chamber Micro-ATX showcase case featuring three-sided tempered glass and an integrated 9.2-inch IPS LCD display. It supports GPUs up to 410mm, CPU coolers up to 162mm, ATX PSUs, a 360mm top radiator, and includes a 140mm PWM fan in the second chamber for enhanced cooling.
Product Overview

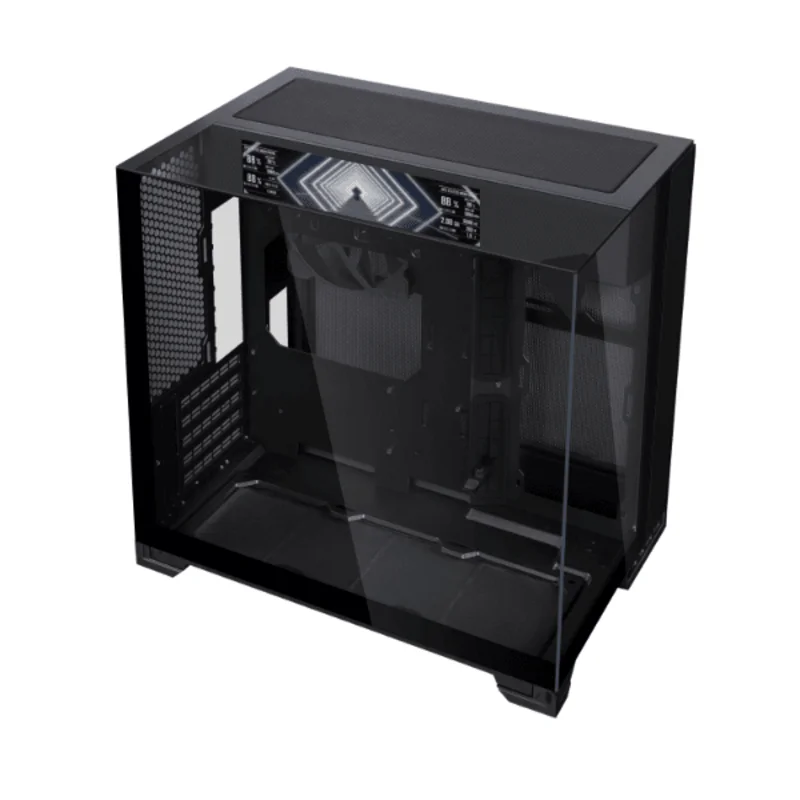

The LIAN LI O11 VISION-M Digital combines the panoramic styling of the O11 VISION series with a compact Micro-ATX dual-chamber design. Front, side, and top tempered-glass panels provide an expansive three-sided view of the internal components, making it ideal for premium showcase and RGB gaming builds.
The defining feature of the Digital edition is its integrated 9.2-inch IPS LCD. The display offers a 1920 × 462 resolution, 60Hz refresh rate, and 500-nit brightness, providing a dedicated area for system information, images, animations, and personalized visual content. LIAN LI's L-Connect 3 software provides customization and management of display content.
The top tempered-glass panel incorporates a mesh airflow section, allowing the case to maintain its panoramic appearance while supporting a top-mounted 360mm or 240mm radiator. The Digital model also officially supports a 240mm side radiator, providing additional flexibility for liquid-cooled configurations.
Cooling capacity is extensive for its compact size. The chassis supports 3 × 120mm top, 2 × 120mm side, 3 × 120mm bottom, and 2 × 120mm rear fans. Its second chamber accommodates an additional 2 × 120mm fans alongside the factory-installed 140mm PWM fan.
The O11 VISION-M Digital supports Micro-ATX and Mini-ITX motherboards, GPUs up to 410mm, CPU air coolers up to 162mm, and standard ATX power supplies under 182mm. LIAN LI also incorporates hidden second-chamber routing for cables and cooling tubes to maintain a cleaner main display area.
Storage support allows either 1 × 3.5-inch HDD plus 2 × 2.5-inch SSDs, or up to 3 × 2.5-inch SSDs. A removable bottom dust tray and modular cooling brackets further simplify system installation and maintenance.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- 🖤 Black Digital Edition – O11VMDX
- 🖥️ Integrated 9.2" IPS LCD Display
- 🔍 1920 × 462 LCD Resolution
- ⚡ Smooth 60Hz Refresh Rate
- ☀️ 500-Nit Display Brightness
- 🎨 L-Connect 3 Display Customization
- 🪟 Three-Sided Panoramic Tempered Glass
- 🖥️ Compact Dual-Chamber Design
- 🔲 Micro-ATX / Mini-ITX Motherboard Support
- 🎮 Up to 410mm GPU Clearance
- ❄️ Up to 162mm CPU Cooler Height
- 💧 Up to 360mm Top Radiator
- 💧 Up to 240mm Side Radiator
- 🌀 1 × 140mm PWM Fan Pre-Installed
- ⚡ Standard ATX PSU Support up to 182mm
- 💾 Up to 3 Storage Drives
- 🧰 Hidden Second-Chamber Cable & Tube Routing
- 🧹 Removable Bottom Dust Tray
- 🔌 USB 3.2 Type-C + 2 × USB 3.0 Type-A
Technical Specifications
| Category | Cases |
| Manufacturer | Lian Li |
| Model | O11VMDB |
| Case Type | Compact Dual-Chamber Micro-ATX |
| Motherboard Support | Micro-ATX / Mini-ITX |
| Digital Display | 9.2" IPS LCD |
| Radiator Support | Please Check Official Specifications |
| Included Fans | 1 × 140mm 4-Pin PWM Fan |
| Front I/O | 2 × USB 3.0 Type-A / 1 × USB 3.2 Type-C / Audio |
| PSU | ATX, under 182mm |
| Color | Black |
| Warranty | 1 Year Manufacturer Warranty |
