LIAN LI EDGE Gold 1000W Fully Modular ATX 3.1 Power Supply – Black | EG1000G
The LIAN LI EDGE Gold 1000W Black is an innovative fully modular ATX 3.1 power supply designed for dual-chamber PC cases. It features PCIe 5.1 support, a 600W 12V-2x6 connector, Cybenetics Platinum efficiency performance, premium capacitors and a detachable USB and PWM fan hub.
Product Overview

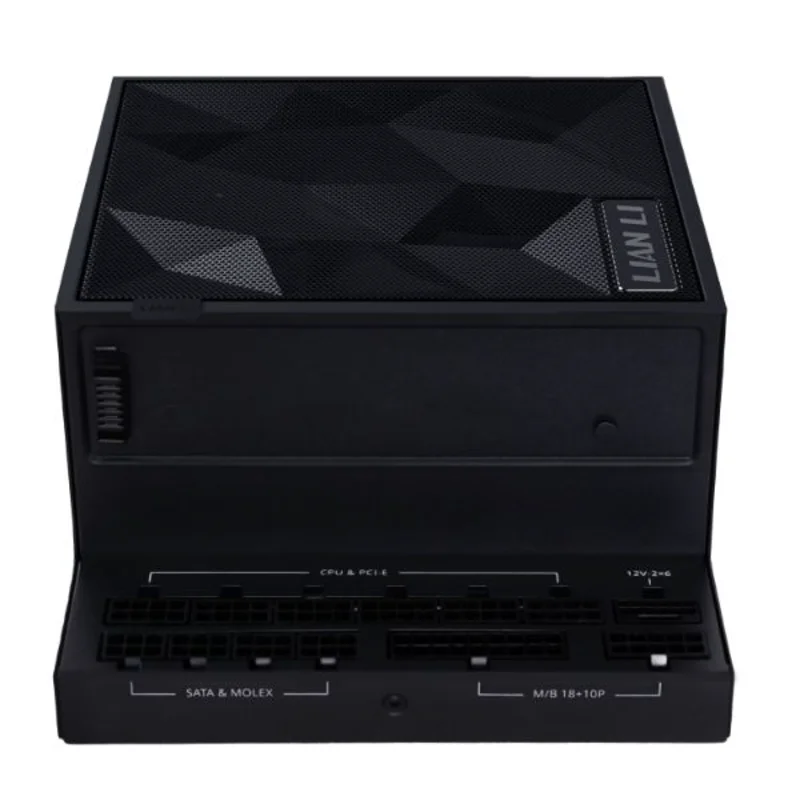

The LIAN LI EDGE Gold 1000W Black combines efficient power delivery with an innovative L-shaped enclosure developed for dual-chamber gaming cases. Its outward-facing modular connections improve accessibility, simplifying cable installation and management in cases such as the LIAN LI O11 series.
The power supply delivers 1000W of total output, with up to 996W available through the combined +12V rail. Compliance with the ATX 3.1 and PCIe 5.1 standards prepares it for modern processors and high-performance graphics cards. A native 600W 12V-2x6 cable provides direct support for compatible GPUs. lian-li.com
LIAN LI’s dual-colour 12V-2x6 connector uses alloy-copper soldered terminals, gold plating and reinforced construction for secure and efficient power delivery. The contrasting connector housing also makes it easier to confirm that the cable is fully inserted.
The PSU carries 80 PLUS Gold and PPLP Gold certifications, while the 1000W model achieves a higher Cybenetics Platinum efficiency rating. German industrial-grade EPCOS capacitors or equivalent Japanese components provide dependable voltage delivery and long-term durability.

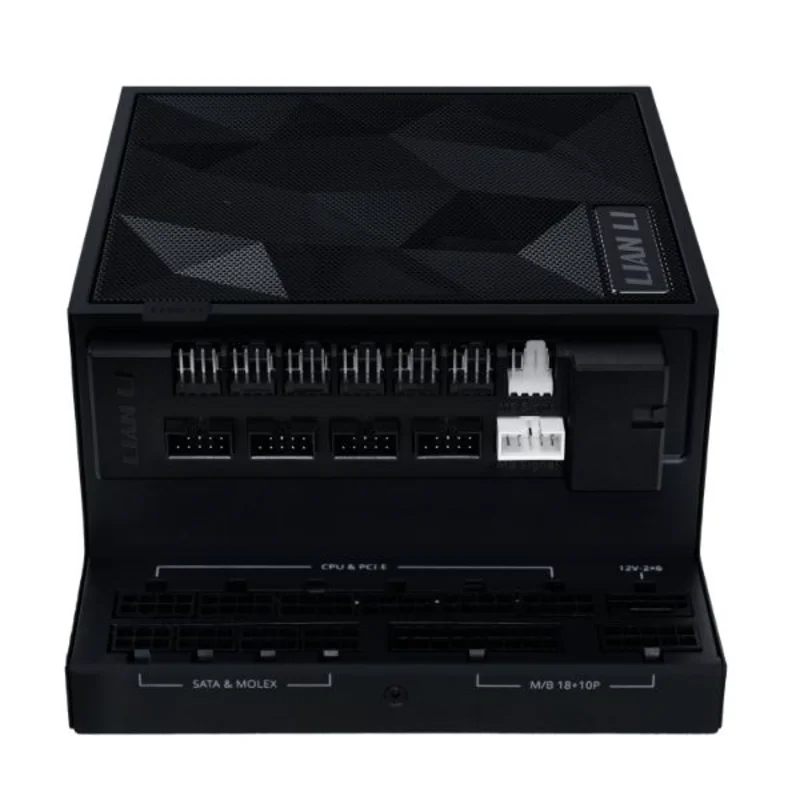

Its detachable magnetic EDGE Hub offers six 4-pin PWM fan headers and four internal USB 2.0 headers, supporting up to seven downstream USB connections. The hub can attach directly to the PSU or operate separately through a compatible PCIe power connection. lian-li.com

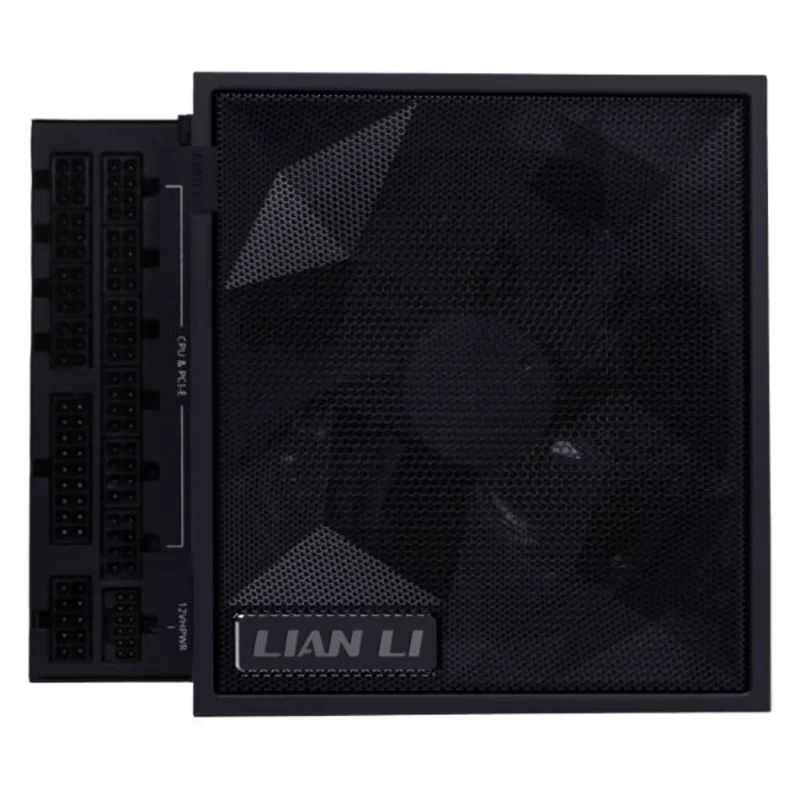

A 120mm FDB fan provides cooling with fanless operation under lighter loads. Fully modular black braided-texture cables and adjustable cable combs enable clean routing, while the removable magnetic dust filter simplifies regular maintenance.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- ⚫ Black Edition
- ⚡ 1000W Power Output
- 🏅 80 PLUS Gold Certified
- 🏆 Cybenetics Platinum Efficiency Rated
- 🔌 ATX 3.1 and PCIe 5.1 Ready
- 🎮 Native 600W 12V-2x6 Connector
- 📐 Innovative L-Shaped PSU Design
- 🧩 Fully Modular Black Cables
- 🪢 Braided-Texture Cables with Cable Combs
- 🔗 Detachable USB 2.0 and PWM Fan Hub
- 🌬️ 120mm Fluid-Dynamic-Bearing Fan
- 🤫 Zero-RPM Operation at Low Loads
- 🧲 Removable Magnetic Fan Dust Filter
- 🔋 German EPCOS or Equivalent Japanese Capacitors
- 🛡️ Comprehensive Electrical Protection Suite
Technical Specifications
| Category | Power Supply |
| Manufacturer | Lian Li |
| Model | EG1000G |
| Wattage | 1000W |
| Efficiency | 80 PLUS Gold |
| Form Factor | ATX / L-Shape |
| Modular | Fully Modular |
| ATX Standard | ATX 3.x |
| GPU Power Connector | PCIe 5.x |
| Fan | Check Official Specs |
| Color | Black |
| Warranty | Manufacturer Warranty |
