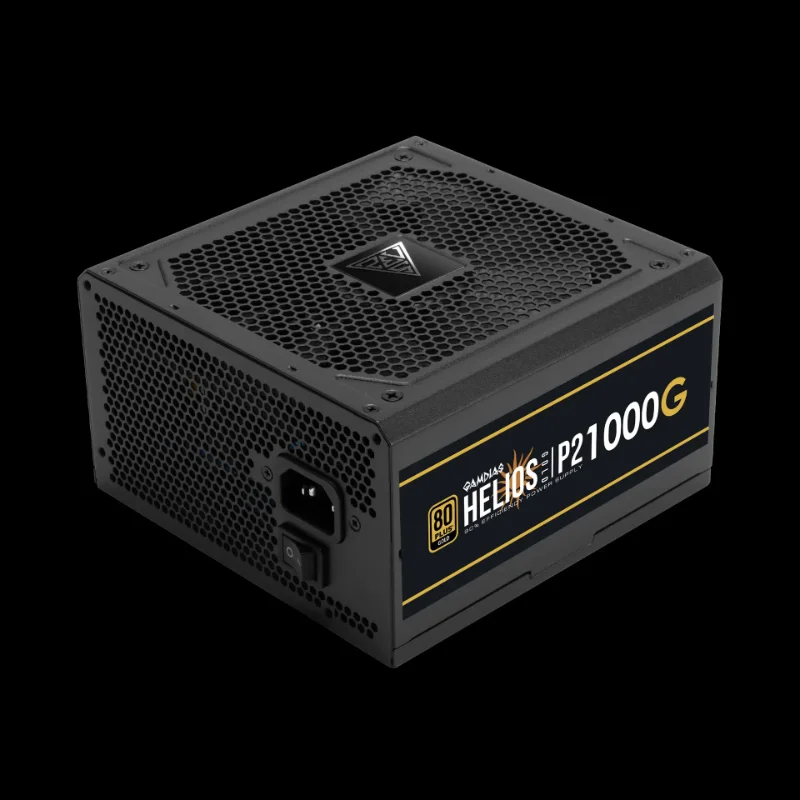

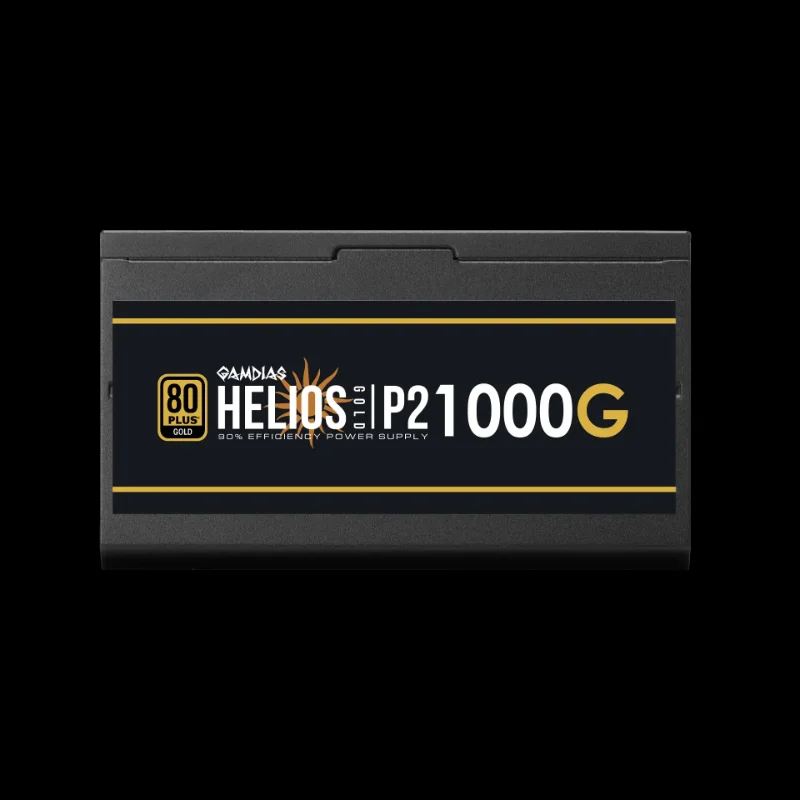

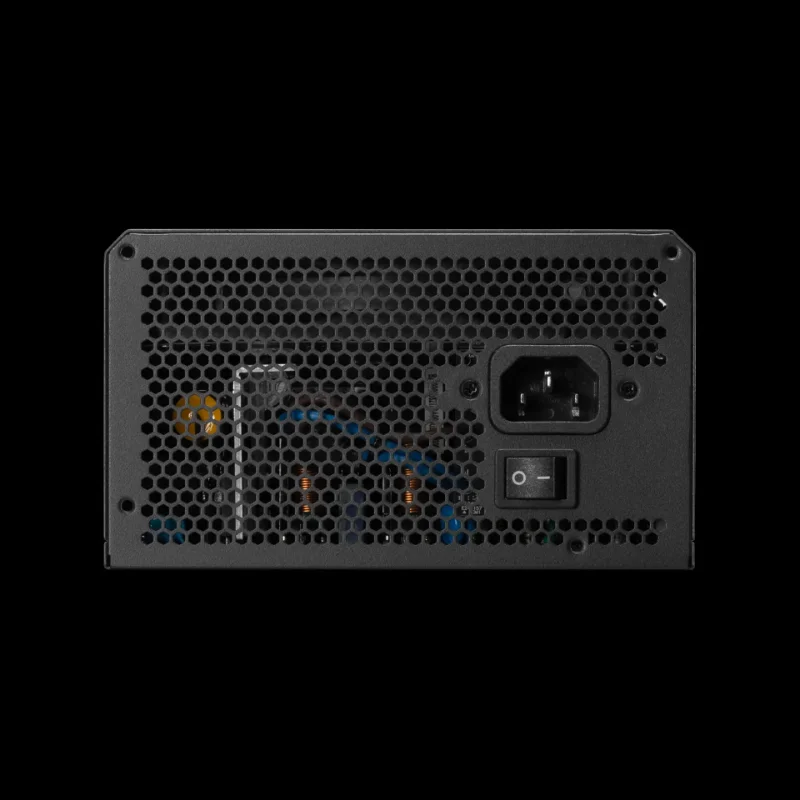

The GAMDIAS HELIOS P2-1000G is a high-capacity, fully modular power supply designed for modern gaming computers, content-creation workstations and other performance-focused systems. It delivers 1000W of continuous power, with a specified peak output of up to 1300W.

Built according to the ATX 3.1 standard, the HELIOS P2-1000G can handle total power excursions of up to twice its rated capacity and GPU power excursions of up to three times the graphics card’s rated power. This helps maintain system stability during short, demanding workload spikes. GAMDIAS

PCIe 5.1 compatibility is provided through a native 16-pin 12V-2x6 cable, capable of delivering up to 600W to a compatible graphics card. Four PCIe 6+2-pin connectors are also included for graphics cards and expansion hardware using traditional PCIe power connections.

Its 80 PLUS Gold certification provides up to 92% efficiency at 50% load, helping reduce energy waste and excess heat. A full-bridge LLC resonant circuit, DC-to-DC architecture and synchronous +12V rectification support stable, efficient voltage delivery. The single +12V rail supplies up to 83.3A and the full rated 1000W output. GAMDIAS

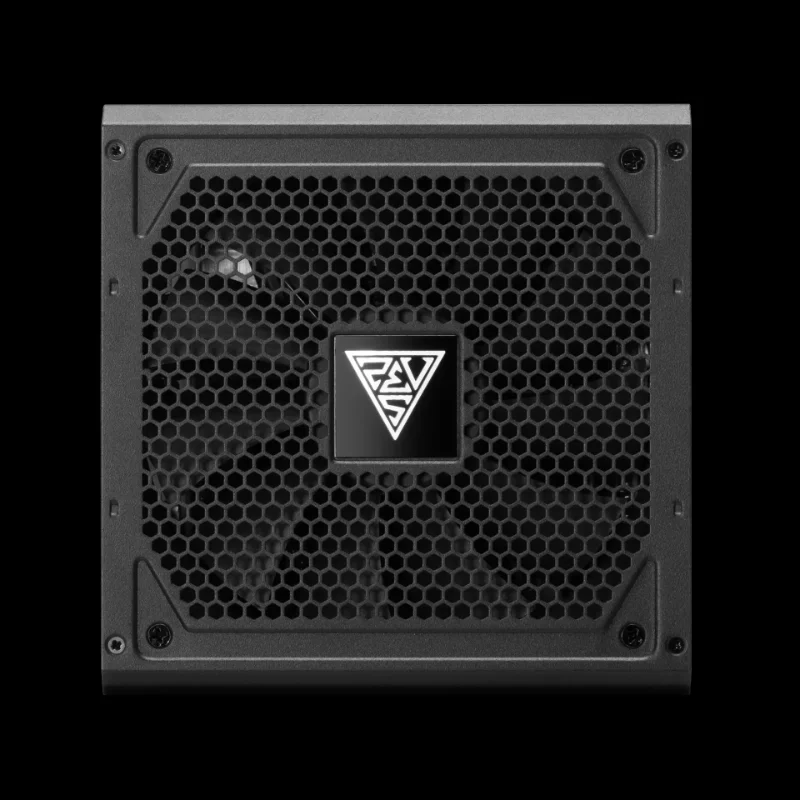

Cooling is handled by a temperature-controlled 135mm sleeve-bearing fan that automatically adjusts its speed according to thermal conditions. The compact 150mm-deep enclosure and fully modular flat cables simplify installation and cable management. Integrated OVP, UVP, OPP, SCP, OCP and OTP protection helps safeguard the connected hardware.

Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.

Key Features

• ⚡ 1000W Continuous Power Output
• 🚀 Up to 1300W Peak Power
• 🏅 80 PLUS Gold Certified
• 🔌 ATX 3.1 and PCIe 5.1 Ready
• 🎮 Native 600W 12V-2x6 GPU Connector
• 🎮 4 × PCIe 6+2-Pin Connectors
• 🧩 Fully Modular Flat Cables
• 🌬️ 135mm Temperature-Controlled Fan
• ⚙️ Full-Bridge LLC and DC-to-DC Design
• 💪 Supports Up to 200% Total Power Excursion
• 🔋 Powerful 83.3A Single +12V Rail
• 🖥️ Supports Intel C6/C7 Power States
• 🛡️ OVP, UVP, OPP, SCP, OCP and OTP Protection
• 📏 Compact 150mm-Deep Design
• ⚫ Black Finish
