CORSAIR FRAME 5000D RS ARGB High-Airflow Mid-Tower ATX Case – Black | CC-9011309-WW
The CORSAIR FRAME 5000D RS ARGB Black is a spacious modular mid-tower PC case designed for high-performance gaming and enthusiast builds. It features CORSAIR's 3D Y-pattern high-airflow front panel, pre-installed RS ARGB cooling fans, support for 420mm radiators at the front, top, and side, GPUs up to 450mm, E-ATX motherboards, and reverse-connector motherboard compatibility.
Product Overview

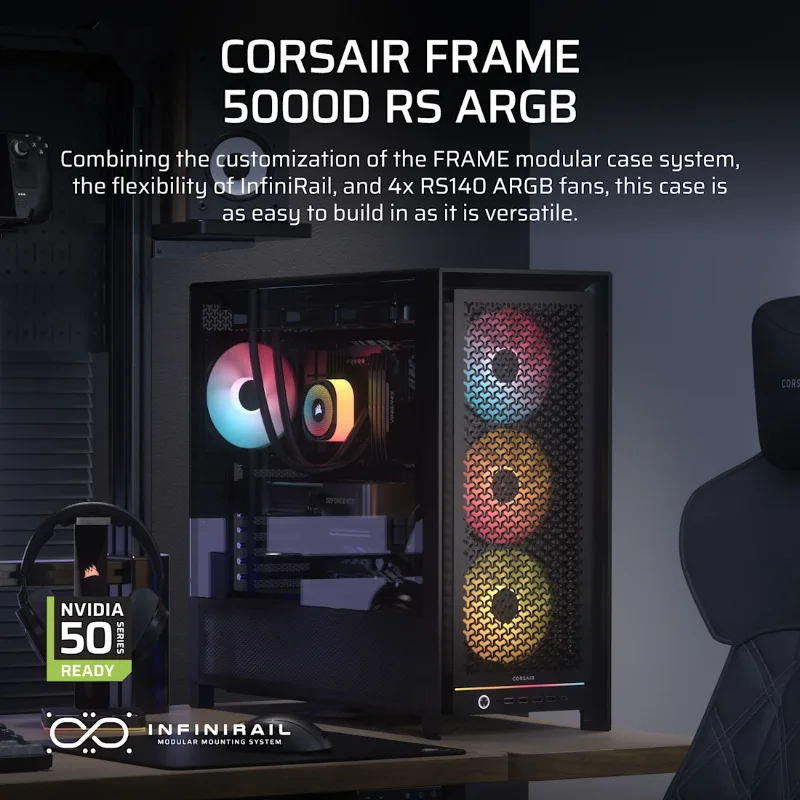

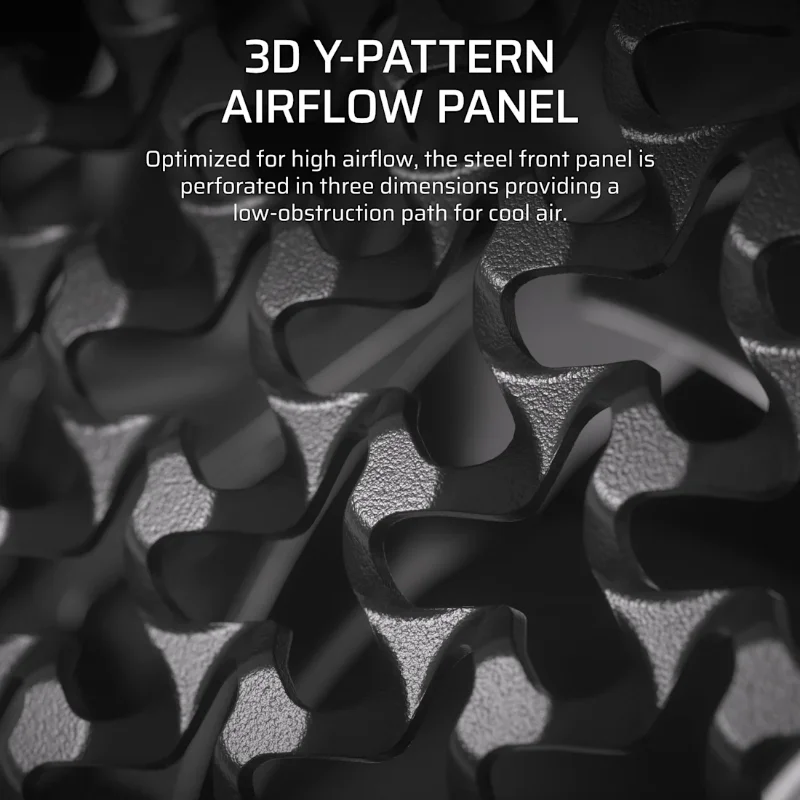

The CORSAIR FRAME 5000D RS ARGB combines a large high-airflow interior with CORSAIR's FRAME Modular Case System, allowing various parts of the chassis to be adapted or upgraded for different build configurations. Its tempered-glass side panel showcases the system, while the 3D Y-pattern steel front panel is designed to provide strong airflow for high-performance components.

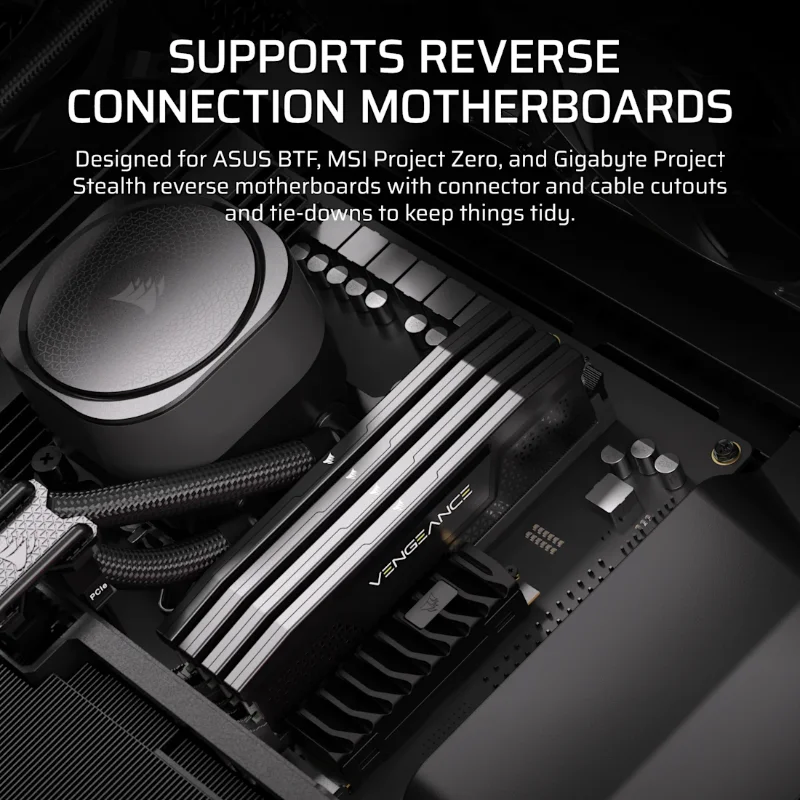

The spacious chassis supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305 × 277mm. It also supports modern reverse-connector motherboards, helping builders hide motherboard cables behind the tray for a cleaner-looking system.
Cooling support is extensive. The front supports 3 × 120mm, 3 × 140mm, or 2 × 200mm fans, while the top and side each support up to 3 × 120mm or 3 × 140mm fans. An additional four 120mm fans can be mounted at the bottom, with a 120mm or 140mm rear position.

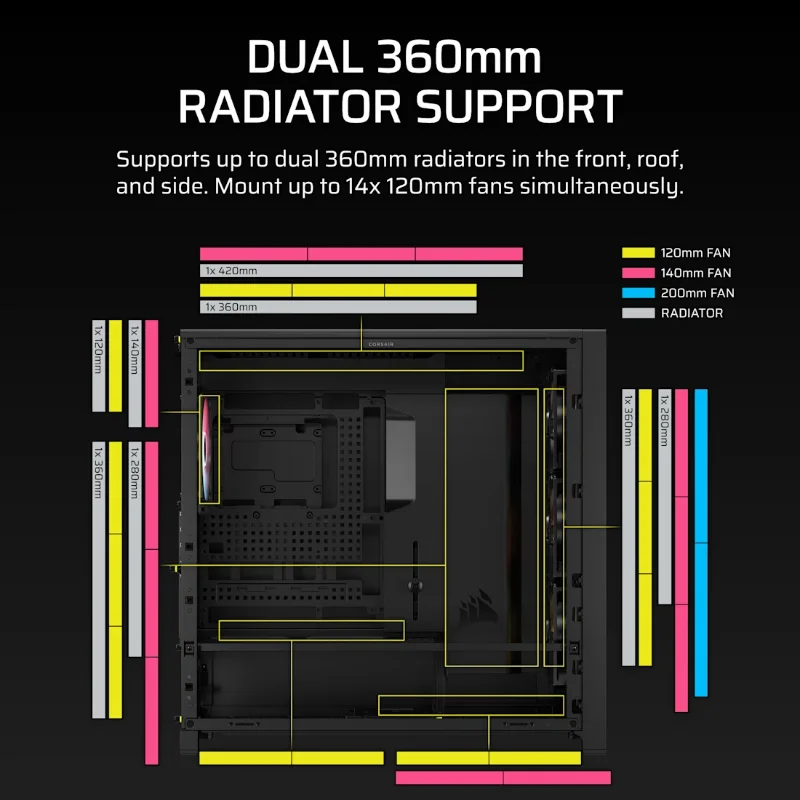

For liquid cooling, the FRAME 5000D supports radiators up to 420mm at the front, top, and side, along with up to a 140mm rear radiator. This provides substantial flexibility for high-end AIO and custom liquid-cooling configurations.

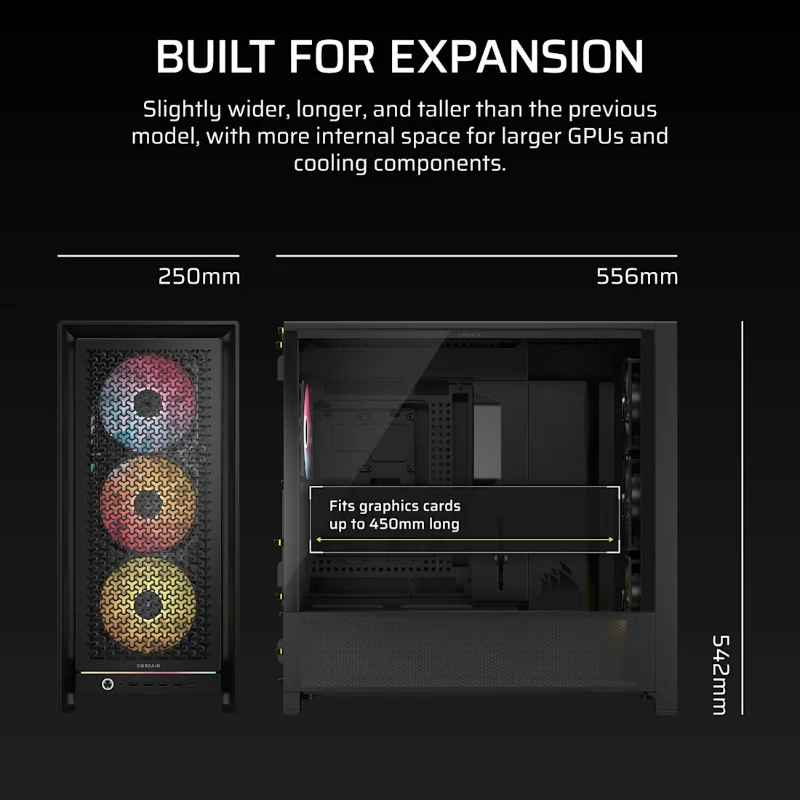

Component clearance includes graphics cards up to 450mm long and CPU air coolers up to 175mm high. The chassis also offers 8 horizontal plus 3 vertical expansion slots, making vertical GPU installation possible with an appropriate riser cable.

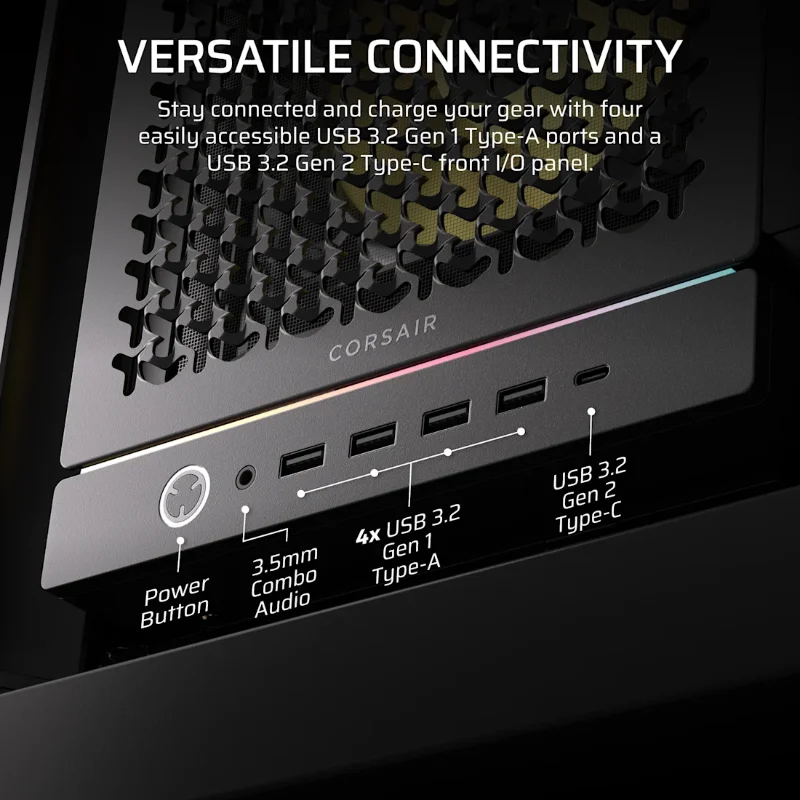

Front connectivity is comprehensive, with 4 × USB 3.2 Gen 1 Type-A ports, 1 × USB 3.2 Gen 2 Type-C port, and a combination headphone/microphone jack.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- 🖤 Premium Black Mid-Tower Design
- 🌬️ 3D Y-Pattern High-Airflow Front Panel
- 🌈 Pre-Installed RS ARGB Cooling Fans
- 🧩 FRAME Modular Case System
- 🔌 Reverse-Connector Motherboard Support
- 🔲 E-ATX / ATX / Micro-ATX / Mini-ITX Support
- 🎮 Up to 450mm GPU Length
- ❄️ Up to 175mm CPU Cooler Height
- 💧 Up to 420mm Front Radiator
- 💧 Up to 420mm Top Radiator
- 💧 Up to 420mm Side Radiator
- 🌀 120mm / 140mm / 200mm Fan Support
- 🎮 8 Horizontal + 3 Vertical Expansion Slots
- 🪟 Tempered-Glass Side Panel
- 💾 2 × 3.5" + 6 × 2.5" Drive Support
- 🔌 USB-C + 4 × USB-A Front I/O
- 🧹 Integrated Dust Filtration
Technical Specifications
| Category | Cases |
| Manufacturer | Corsair |
| Model | FRAME 5000D AIRFLOW Black |
| Case Type | Mid-Tower PC Case |
| Motherboard Support | E-ATX (305 × 277mm) / ATX / Micro-ATX / Mini-ITX |
| GPU Clearance | Please Check Official Specifications |
| Radiator Support | Please Check Official Specifications |
| Included Fans | 4x RS140 ARGB Fans |
| Front I/O | 4 × USB-A / 1 × USB-C / Audio Combo |
| PSU | Not Included / Please Check Official Specifications |
| Color | Black |
| Warranty | 1 Year Manufacturer Warranty |
