Product Details

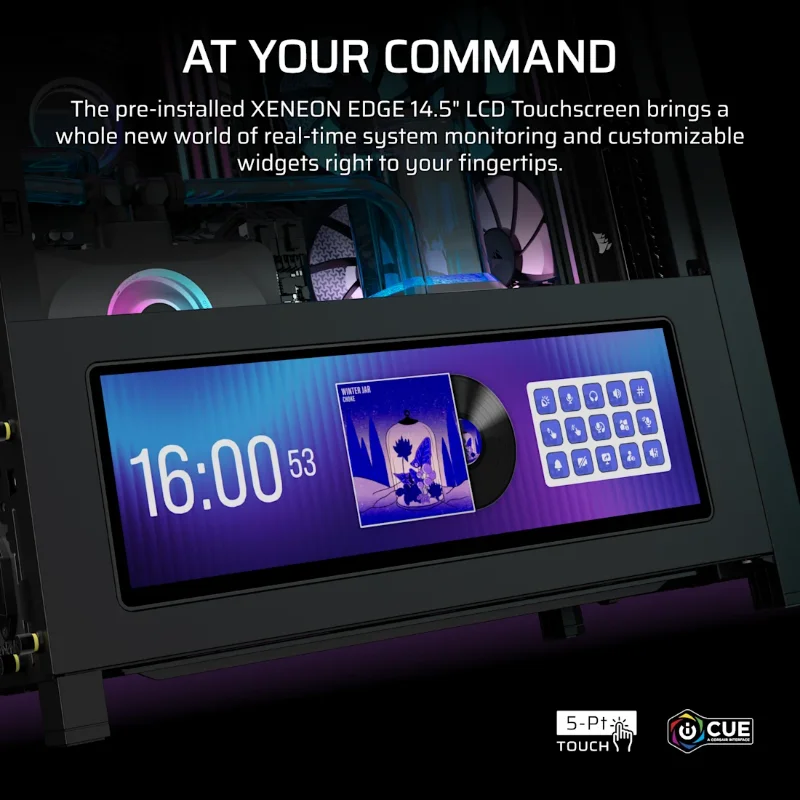

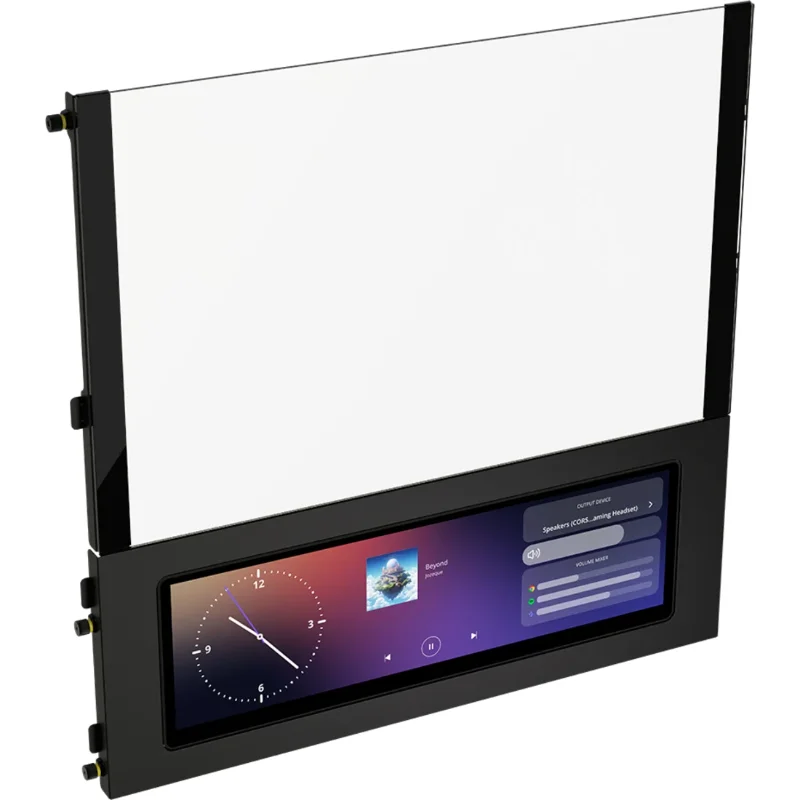

The CORSAIR FRAME 4000D LCD RS ARGB takes the modular FRAME 4000D platform and upgrades it with an integrated XENEON EDGE 14.5-inch LCD touchscreen. The display can be used for system monitoring, applications, calendars, media, chats, and other desktop content, making it a major visual feature for premium gaming setups.

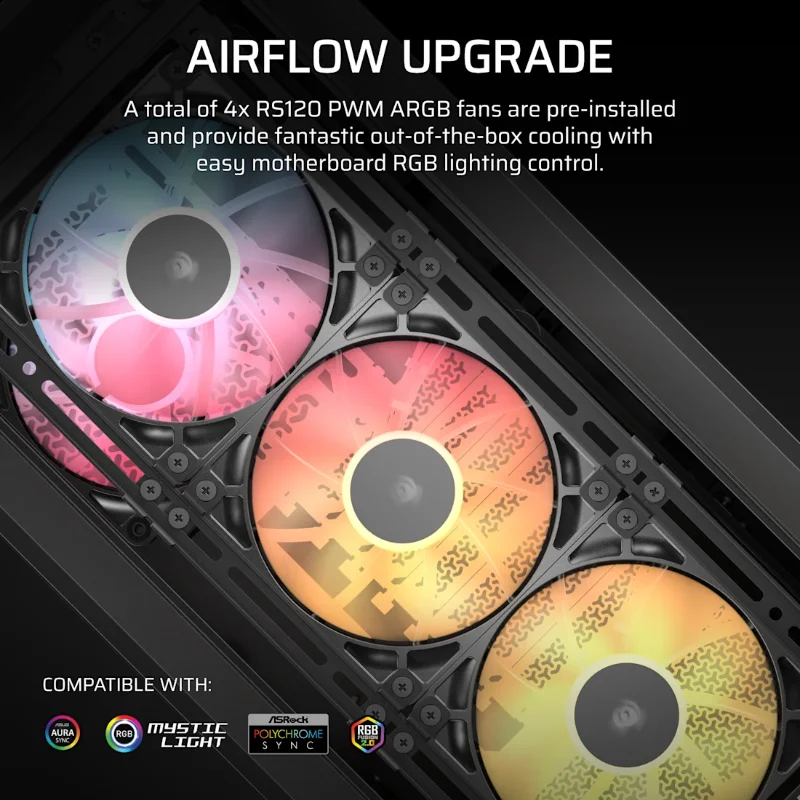

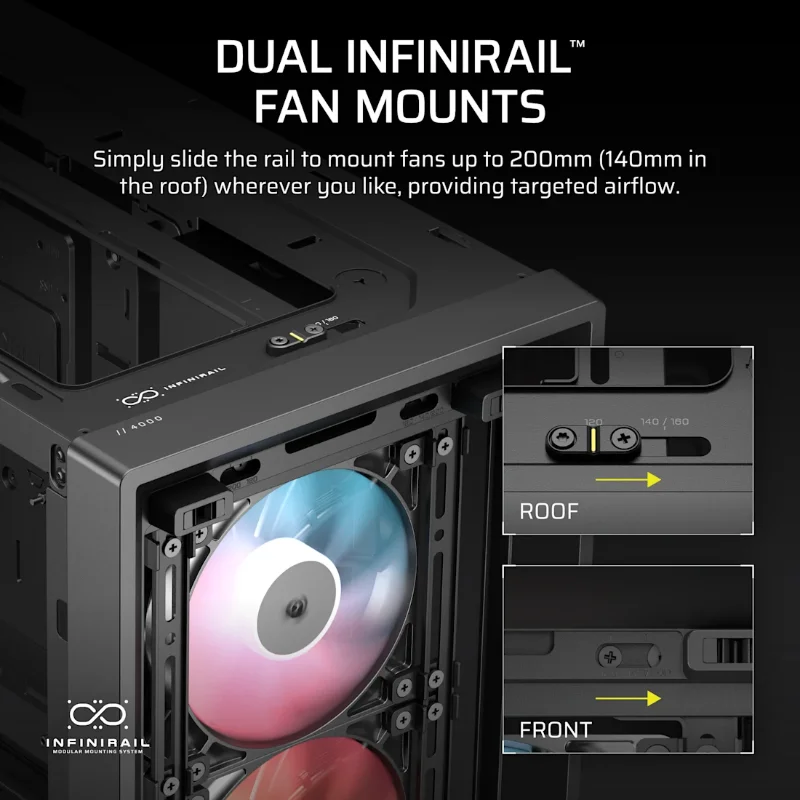

Cooling is provided out of the box by four RS120 ARGB PWM fans, configured as three front intake fans and one rear exhaust fan. CORSAIR's InfiniRail Fan Mounting System provides flexible positioning for 120mm and 140mm fans, while this LCD version also adds a dedicated bottom 120mm fan mounting position.

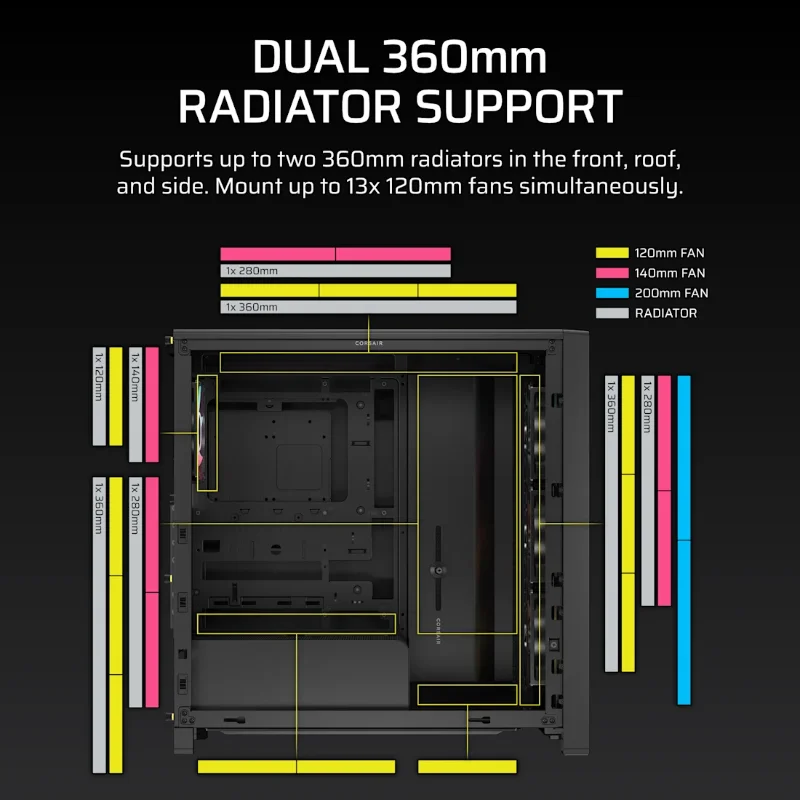

The chassis offers extensive liquid-cooling support, with mounting positions for 360mm radiators at the front, top, and side. CORSAIR states that dual 360mm radiators can be installed, while overall fan capacity reaches up to 13 × 120mm or 7 × 140mm fans.

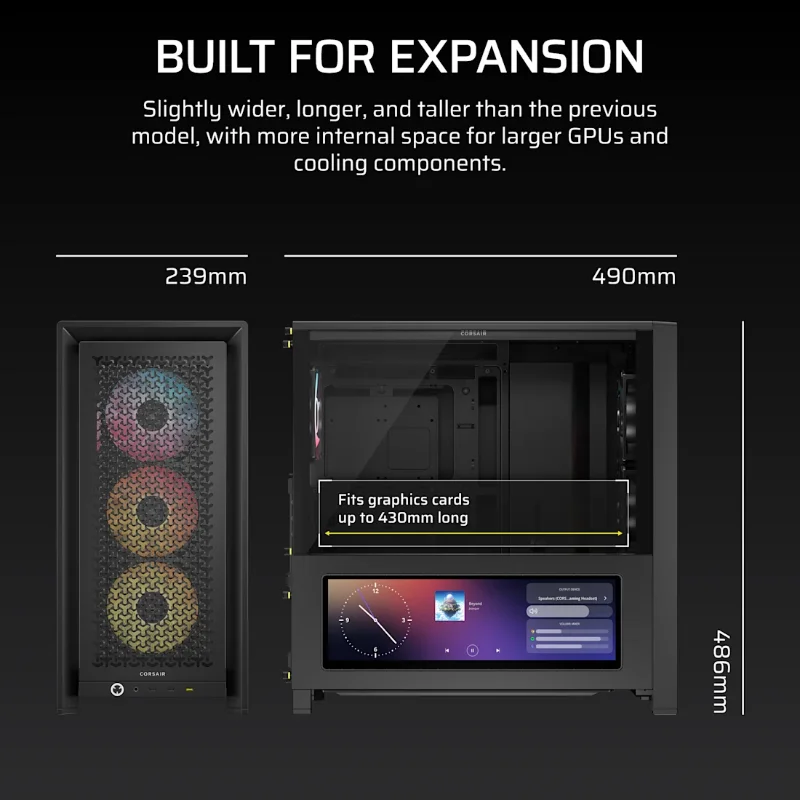

Hardware compatibility is equally generous. The FRAME 4000D LCD supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305 × 277mm, CPU air coolers up to 170mm, ATX power supplies up to 220mm, and graphics cards up to 430mm according to CORSAIR's technical specifications. CORSAIR separately notes up to 405mm GPU space with front fans installed, so actual clearance depends on the cooling configuration.

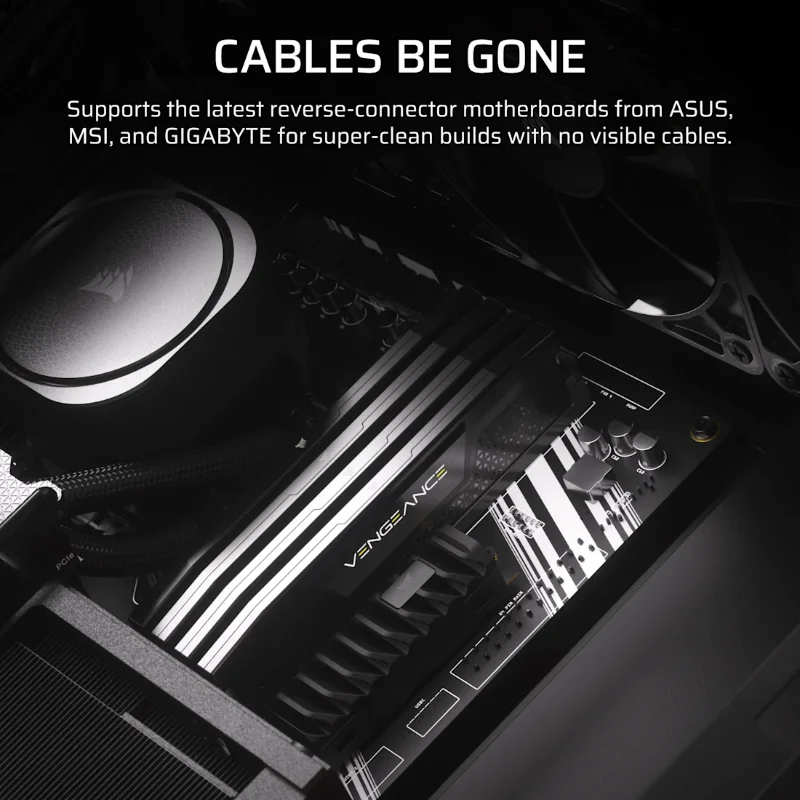

The case is also compatible with reverse-connector motherboards, including ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth designs. A built-in GPU anti-sag stabilization arm helps support large graphics cards.

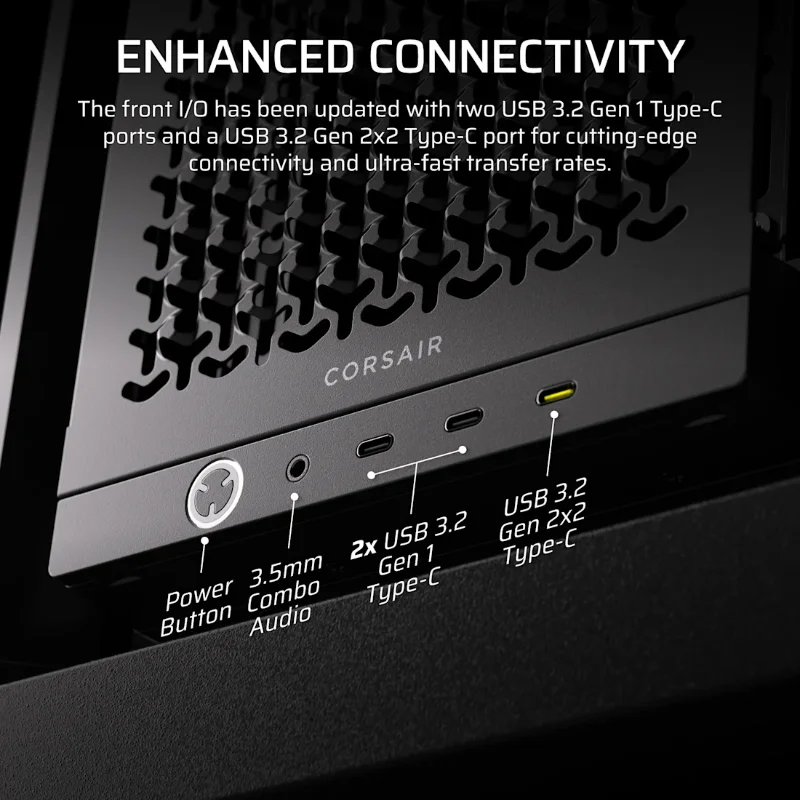

Front connectivity is unusually modern, providing three USB-C ports: one USB 3.2 Gen 2x2 Type-C connection offering up to 20Gbps and two USB 3.2 Gen 1 Type-C connections offering up to 5Gbps, plus a combined headphone/microphone jack.

Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.

Key Features

• 🖥️ Pre-Installed XENEON EDGE 14.5" LCD Touchscreen
• 🖤 Premium Black Edition
• 🌈 4 × RS120 ARGB PWM Fans Included
• 🌬️ 3 Front Intake + 1 Rear Exhaust Fan
• 🧩 FRAME Modular Case System
• 🌀 InfiniRail Fan Mounting System
• 🔌 Reverse-Connector Motherboard Support
• 🔲 E-ATX / ATX / Micro-ATX / Mini-ITX
• 🎮 Up to 430mm Maximum GPU Length
• ❄️ Up to 170mm CPU Cooler Height
• ⚡ Up to 220mm PSU Length
• 💧 Up to 360mm Front Radiator
• 💧 Up to 360mm Top Radiator
• 💧 Up to 360mm Side Radiator
• 🌀 Up to 13 × 120mm Fans
• 🎮 Integrated GPU Anti-Sag Arm
• 🪟 Tempered-Glass Side Panel
• 🔌 3 × Front USB-C Ports
• ⚡ Up to 20Gbps Front USB-C
• 💾 2 × 3.5" + 4 × 2.5" Drive Bays
