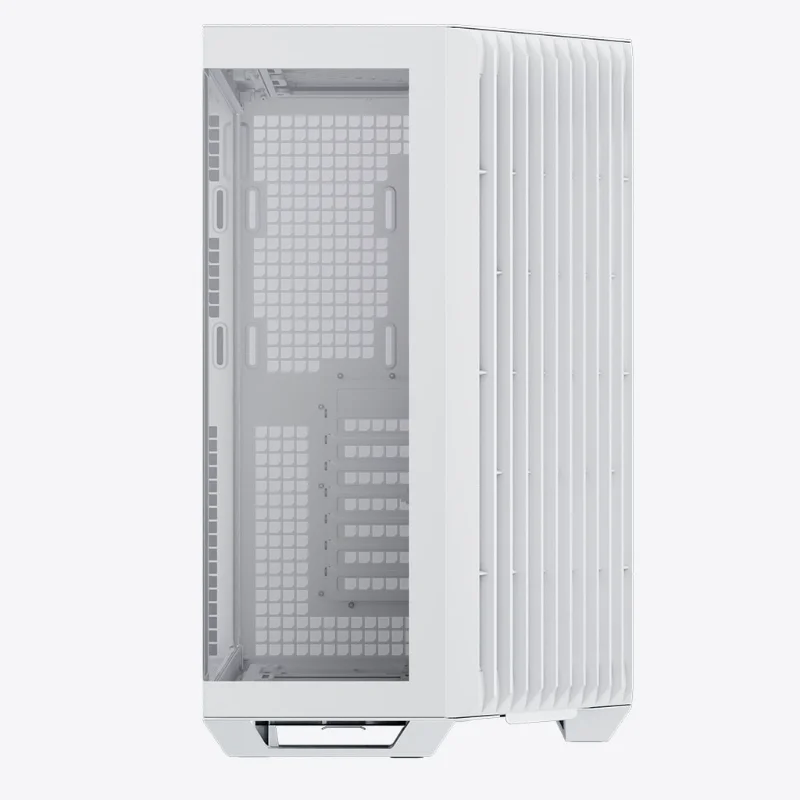

APNX V1 Panoramic Dual-Chamber Mid-Tower Case – White | V1-WT-v1
The APNX V1 White (V1-WT-v1) is a premium panoramic dual-chamber mid-tower case featuring a distinctive 45° angled airflow intake, adjustable motherboard positioning, and extensive cooling flexibility. It supports ATX, Micro-ATX and Mini-ITX motherboards, GPUs up to 395mm, CPU coolers up to 170mm, up to 10 fans, and 360mm radiators at multiple mounting positions.
Product Overview
The APNX V1 combines a panoramic dual-chamber layout with a unique 45-degree angular intake design engineered to direct fresh airflow toward both the GPU and CPU. The White edition uses a clean showcase-oriented design with tempered glass providing a wide view of the internal components.
One of the V1's standout features is its adjustable motherboard position mechanism. The motherboard can be installed in two positions: one configuration provides additional room for GPU airflow, while the alternative creates more space for thicker radiator and fan combinations to prioritize CPU cooling.
Cooling support is extensive. The front-right angled position accommodates 3 × 120mm, 2 × 140mm, or 2 × 160mm fans, while the top supports 3 × 120mm or 2 × 140mm and the bottom supports 3 × 120mm or 2 × 140mm. Together with the rear 120mm position, the chassis provides up to 10 fan mounting positions.
For liquid cooling, the V1 supports radiators up to 360mm at the front-right, top, and bottom, plus a 120mm rear radiator. APNX notes that bottom 140/280mm radiator compatibility depends on the motherboard being installed in the upper position, and bottom-mounted liquid cooling is not generally recommended.
Hardware compatibility includes ATX, Micro-ATX and Mini-ITX motherboards, graphics cards up to 395mm when no radiator is installed in the front-right position, CPU air coolers up to 170mm, and ATX power supplies up to 220mm including cables. An adjustable GPU support mount is included to help secure large graphics cards.
The dual-chamber design also provides a generous 90mm cable-management depth, dedicated cable channels, Velcro ties, and rubber cable pathways. Storage can be configured for up to 2 × 3.5-inch drives and 4 × 2.5-inch SSDs, or up to 6 × 2.5-inch SSDs.
Please check the official manufacturer website for the latest and most accurate compatibility, clearance, radiator, fan, and I/O specifications before purchase or finalizing a build.
Key Features
- 🤍 White Edition – V1-WT-v1
- 🪟 Panoramic Tempered-Glass Design
- 🖥️ Dual-Chamber Mid-Tower Layout
- 🌬️ Unique 45° Angular Air Intake
- 🔄 2-Position Adjustable Motherboard Mount
- 🔲 ATX / Micro-ATX / Mini-ITX Support
- 🎮 Up to 395mm GPU Clearance
- 🛡️ Adjustable GPU Support Mount Included
- ❄️ Up to 170mm CPU Cooler Height
- 🌀 Up to 10 Fan Positions
- 🌀 Supports Up to 2 × 160mm Fans
- 💧 360mm Front-Right Radiator Support
- 💧 360mm Top Radiator Support
- 💧 360mm Bottom Radiator Support
- ⚡ ATX PSU Support up to 220mm Including Cables
- 💾 Up to 6 × 2.5" SSDs
- 🧰 Generous 90mm Cable-Management Depth
- 🔧 Quick-Release Cooling Brackets & Panels
- 🧹 Multiple Integrated/Removable Dust Filters
- 🔌 USB 3.2 Gen 2×2 Type-C 20Gbps
- 🔌 2 × USB 3.2 Gen 1 Type-A
Technical Specifications
| Category | Cases |
| Manufacturer | APNX |
| Model | V1-WT-v1 |
| Case Type | Mid-Tower PC Case |
| Motherboard Support | ATX / Micro-ATX / Mini-ITX |
| GPU Clearance | Please Check Official Specifications |
| Radiator Support | Please Check Official Specifications |
| Included Fans | None |
| Front I/O | 1 × USB 3.2 Gen 2×2 Type-C / 2 × USB 3.2 Gen 1 Type-A / Audio & Mic |
| PSU | Not Included / Please Check Official Specifications |
| Color | White |
| Warranty | 1 Year Manufacturer Warranty |
